MixicDatasheet (PDF)

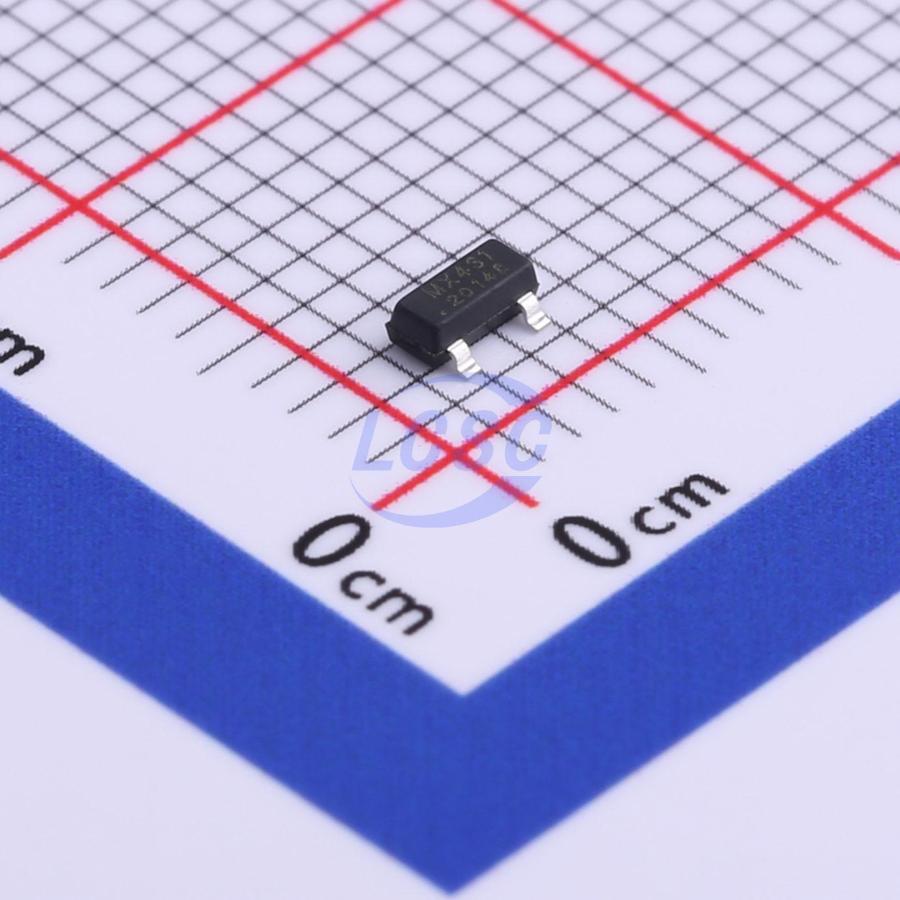

MX431
Shunt Voltage Reference IC Adjustable 2.5V~36V ±0.5% 100mA SOT-23
SOT-23ROHS CompliantActive
Adjustable high-precision shunt voltage regulator circuit
- Manufacturer
- Mixic
- Manufacturer part #
- MX431
- Store part #
- C512790
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C512790
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.31 | ₹51.55 |
| 50+ | ₹8.22 | ₹411.00 |
| 150+ | ₹7.17 | ₹1,075.50 |
| 500+ | ₹6.39 | ₹3,195.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
5 × ₹10.31
₹51.55
excl. GST
₹60.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX431
₹51.55 for 5 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Quiescent Current
- 1.5uA
- Tolerance
- ±0.5%
- Voltage - Supply
- 40V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
MX431/MX431T is a three-terminal adjustable voltage reference that maintains stable output voltage over the operating temperature range. This device features fast turn-on, low temperature coefficient, and low output impedance. These characteristics make the MX431/MX431T an ideal replacement for Zener diodes, suitable for use in switching power supplies, chargers, and other adjustable voltage regulators. The output voltage of the MX431/MX431T can be set to any value between REF (2.5V) and the maximum CATHODE terminal voltage (36V) by means of external resistors. The MX431/MX431T precision voltage reference is available in two output accuracy grades: 0.5% and 1%. The device is offered in a compact package: SOT-23. Note that the MX431 and MX431T have different pin configurations; attention must be paid when designing applications.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Precision Voltage Reference
Key features
- Programmable precision voltage output
- High stability with capacitive loads
- Current capability: 100mA (MAX)
- Low temperature coefficient: 25ppm/°C (typical)
- Low output noise
- Wide operating temperature range: -40°C~+125°C
- Package MSL rating: MSL1
