Wuxi MaxinmicroDatasheet (PDF)

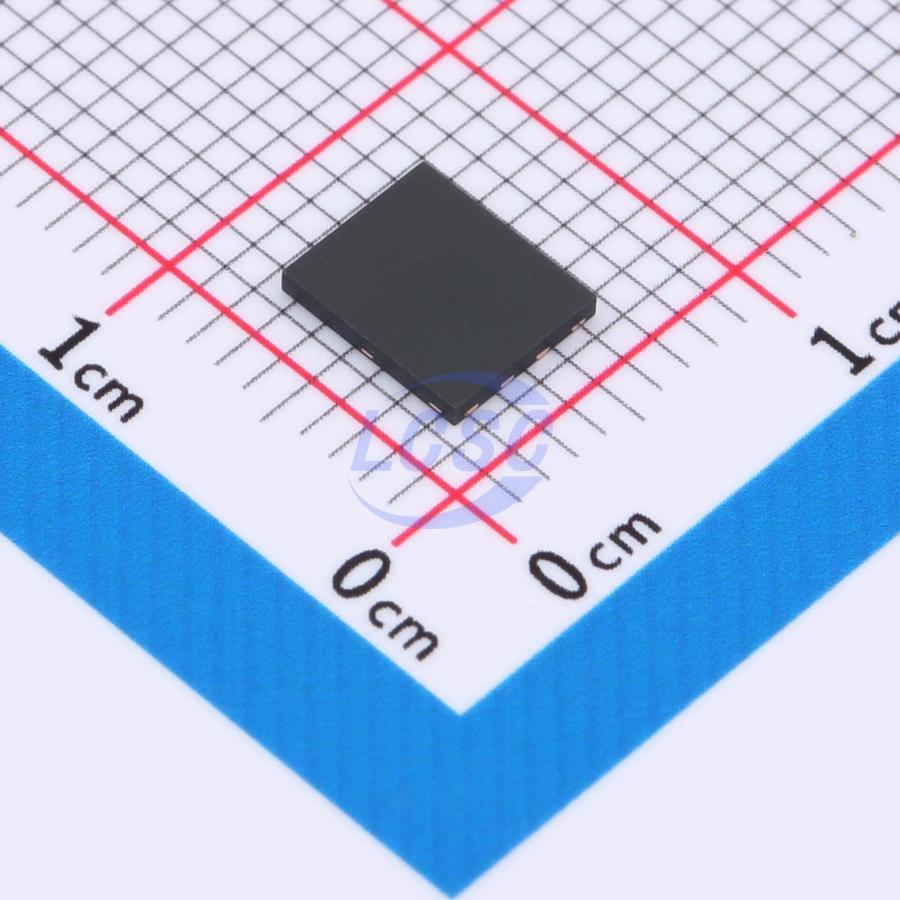

MX5050D4005
DFN-8L(5x6) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-8L(5x6)ROHS CompliantActive
40V 10A High-Side OR-ing FET Circuit
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX5050D4005
- Store part #
- C41384467
- Package / case
- DFN-8L(5x6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,977 in stock
#C41384467
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.38 | ₹105.38 |
| 10+ | ₹84.78 | ₹847.80 |
| 30+ | ₹74.38 | ₹2,231.40 |
| 100+ | ₹64.18 | ₹6,418.00 |
| 500+ | ₹58.12 | ₹29,060.00 |
| 1,000+ | ₹54.86 | ₹54,860.00 |
1 × ₹105.38
₹105.38
excl. GST
₹124.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MX5050D4005
₹105.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Reverse current blocking
- Operating Voltage
- 5V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.382 g
Overview
The MX5050D4005 high-side OR-ing works with an internal MOSFET and acts as an ideal diode rectifier when connected in series with the power supply. This OR-ing circuit enables MOSFETs to replace diode rectifiers in power distribution networks, reducing power loss and voltage drop. The MX5050D4005 controller provides charge pump gate drive for an internal N-channel MOSFET and fast response comparator to turn off the FET when current flows in reverse. The MX5050D4005 can be connected to power supplies from 1V to 40V （a separate VS supply is needed when IN is 1V to 30V）and can withstand transient voltages up to 40V.
Applications
- Active OR-ing of redundant (N+1) power supplies
Key features
- Wide operating input voltage range VIN: 5V to 30V
- transient voltage
- Charge pump gate driver for internal N-channel MOSFET
- 50ns fast response to current reversal
- 2A peak gate off current internal
- Ultra-small VDS turn-off voltage reduces turn-off time
- 8-Pin DFN5*6
