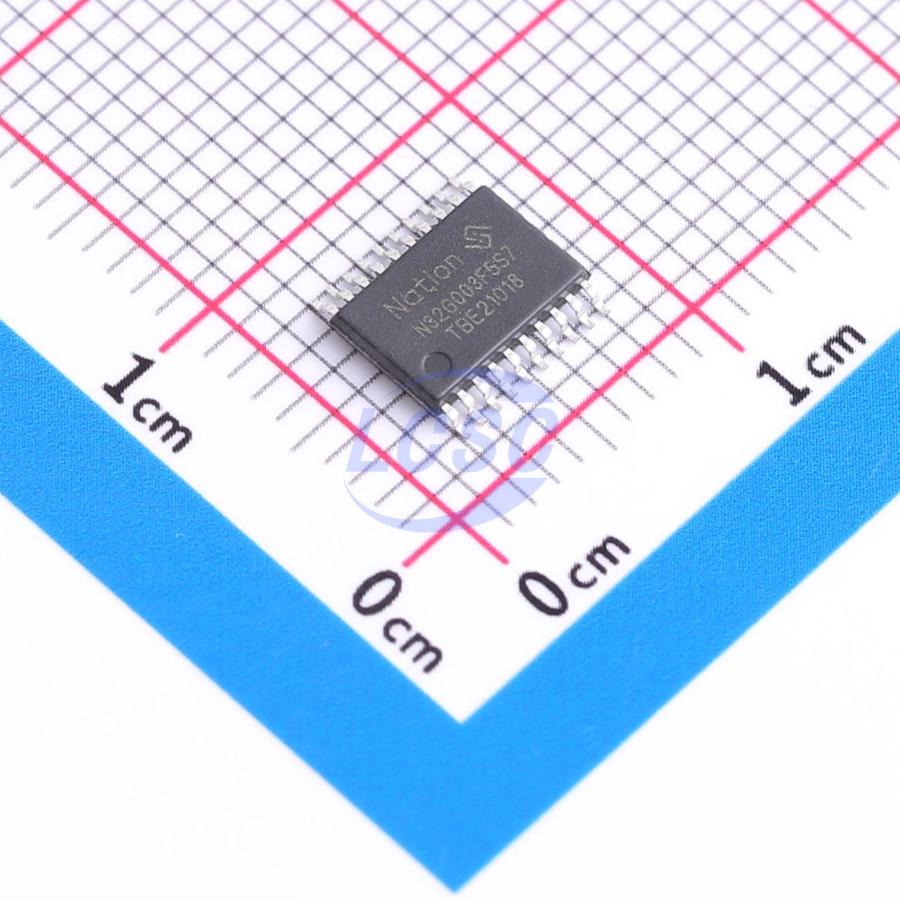

N32G003F5S7

The N32G003 series microcontrollers feature a 32-bit ARM Cortex-M0 core with a maximum operating frequency of 48MHz, integrating up to 29.5KB Flash and up to 3KB SRAM. The devices incorporate one high-speed AHB bus, one low-speed peripheral bus APB, and a bus matrix, supporting up to 18 general-purpose I/Os. They provide a rich set of high-performance analog interfaces, including one 12-bit 1Msps ADC with up to 9 external input channels and one high-speed comparator, along with multiple digital communication interfaces comprising 2× UART, 1× I2C, and 1× SPI. The N32G003 series operates reliably over a temperature range of -40°C to +105°C with a supply voltage of 2V to 5.5V, offering multiple low-power modes to meet the requirements of low-power applications. The series is available in 20-pin package options. The N32G003 series microcontrollers are well-suited for a wide range of applications, including low-power e-cigarettes, security systems, smart home devices, motor control, and power management systems.

Applications

• Low-power e-cigarettes
• Security systems
• Smart home
• Motor control
• Power management systems

Key features

• Core CPU: 32-bit ARM Cortex-M0, single-cycle hardware multiply instruction, up to 48MHz
• Memory: Up to 29.5KByte on-chip Flash, 100K erase/write cycles, 10-year data retention; 3KByte on-chip SRAM
• Power modes:
• Run mode: All peripherals configurable
• Stop mode: TIM6 and IWDG configurable operation, SRAM data retention, all IO states retained
• Power Down mode: All power off, supports NRST, PA1_WKUP0, PA2_WKUP1 wake-up
• Clock:
• HSI: Internal high-speed RC OSC 48MHz/40MHz (selectable)
• LSI: Internal low-speed RC OSC 32KHz
• MCO: 1 clock output, configurable as divided HSI or LSI output
• Reset:
• Power-on/power-off/external pin reset
• Programmable low-voltage detection reset
• Watchdog reset and software reset
• Communication interfaces:
• 2× UART, supporting asynchronous mode, multi-processor communication mode, single-wire half-duplex mode
• 1× SPI, up to 12MHz
• 1× I2C, up to 1MHz, master/slave mode configurable
• Analog interfaces:
• 1× 12-bit 1Msps high-speed ADC, up to 9 external single-ended input channels, 1 internal channel connected to 1.2V reference
• 1× high-speed analog comparator, positive input supports 4-level adjustable hysteresis: 0mV/100mV/200mV/300mV
• Up to 18 GPIOs with multiplexed functions
• 1× buzzer with complementary output
• Timers/Counters:
• 1× 16-bit advanced timer, input capture and output compare; 4 independent channels per timer, 3 of which support 6-channel complementary PWM output
• 1× 16-bit general-purpose timer, 2 independent channels per timer, input capture/output compare/PWM output
• 1× 16-bit basic timer, supports STOP wake-up low-power mode
• 1× 24-bit SysTick
• 1× 12-bit IWDG
• Programming: SWD debug interface
• Security: CRC16 with multiple Read Protection (RDP) levels (L0/L1/L2)
• 96-bit UID and 128-bit UCID
• Operating conditions:
• Supply voltage: 2V~5.5V
• Operating temperature: -40°C~105°C
• ESD: ±4KV (HBM), ±1KV (CDM)
