NUVOTONDatasheet (PDF)

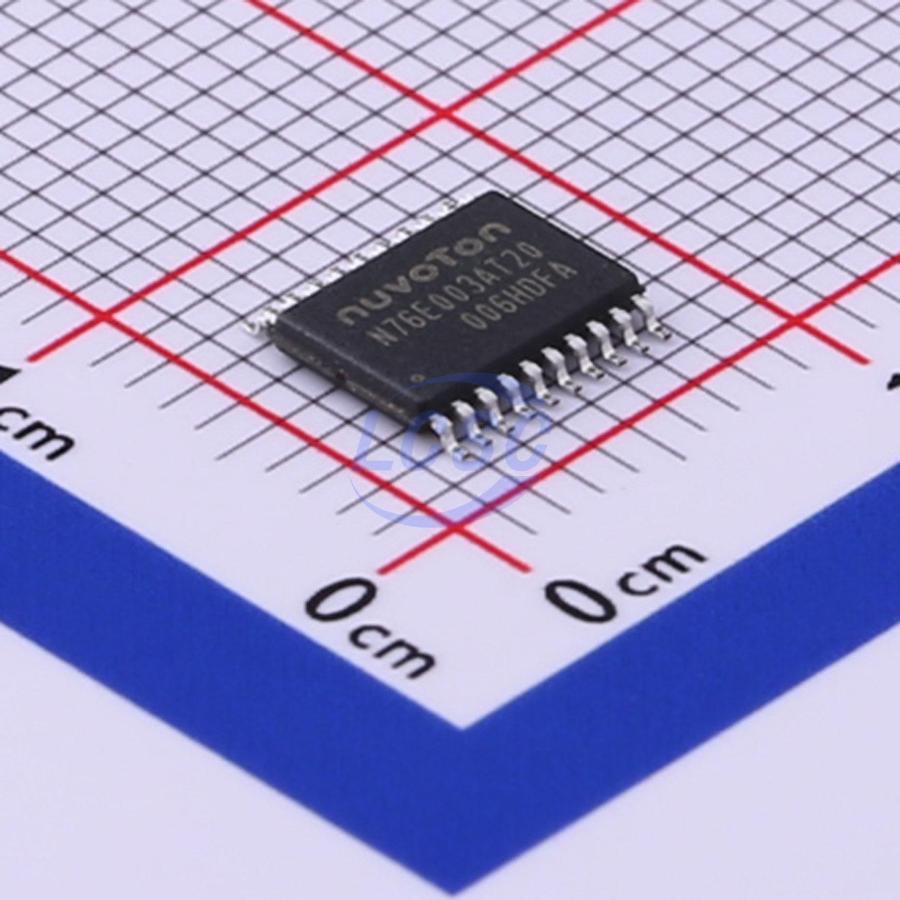

N76E003AT20
51 Series 8 Bit 16MHz TSSOP-20 Microcontrollers RoHS
TSSOP-20ROHS3 CompliantActive
1T 8051-based Microcontroller
- Manufacturer
- NUVOTON
- Manufacturer part #
- N76E003AT20
- Store part #
- C82751
- Package / case
- TSSOP-20
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,041 in stock
#C82751
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.36 | ₹119.36 |
| 10+ | ₹97.95 | ₹979.50 |
| 30+ | ₹87.15 | ₹2,614.50 |
| 74+ | ₹72.43 | ₹5,359.82 |
| 518+ | ₹66.16 | ₹34,270.88 |
| 1,036+ | ₹62.92 | ₹65,185.12 |
1 × ₹119.36
₹119.36
excl. GST
₹140.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 74 per tube
N76E003AT20
₹119.36 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 18
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 2.4V~5.5V
- Program Memory Type
- FLASH
- EEPROM
- 4KB
- Program Storage Size
- 18KB
- CPU Core
- 51 Series
- Core Size
- 8 Bit
- CPU Maximum Speed
- 16MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 74 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
Overview
The N76E003 is an embedded flash type, 8-bit high performance 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. The N76E003 contains a up to 18K Bytes of main Flash called APROM, in which the contents of User Code resides. The N76E003 Flash supports In-Application-Programming (IAP) function, which enables on-chip firmware updates. IAP also makes it possible to configure any block of User Code array to be used as nonvolatile data storage, which is written by IAP and read by IAP or MOVC instruction. There is an additional Flash called LDROM, in which the Boot Code normally resides for carrying out In-System-Programming (ISP). The LDROM size is configurable with a maximum of 4K Bytes. To facilitate programming and verification, the Flash allows to be programmed and read electronically by parallel Writer or I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS51FC0AE#C910591NUVOTON · TSSOP-20 | NUVOTON | TSSOP-20 | 3,133 | ₹135.79 · 3,133 in stock | View |
 | N76E885AT20#C114652NUVOTON · TSSOP-20 | NUVOTON | TSSOP-20 | 25 | ₹109.49 · 25 in stock | View |
 | SC95F8522X20U#C2914366SOC(Shenzhen SinOne Microelectronics) · TSSOP-20 | SOC(Shenzhen SinOne Microelectronics) | TSSOP-20 | 497 | ₹99.74 · 497 in stock | View |
 | SC92L7532X20U#C49246626SOC(Shenzhen SinOne Microelectronics) · TSSOP-20 | SOC(Shenzhen SinOne Microelectronics) | TSSOP-20 | 272 | ₹102.35 · 272 in stock | View |
 | SC95F7572X20U#C52711796SOC(Shenzhen SinOne Microelectronics) · TSSOP-20 | SOC(Shenzhen SinOne Microelectronics) | TSSOP-20 | 2 | ₹76.48 · 2 in stock | View |
