NUVOTONDatasheet (PDF)

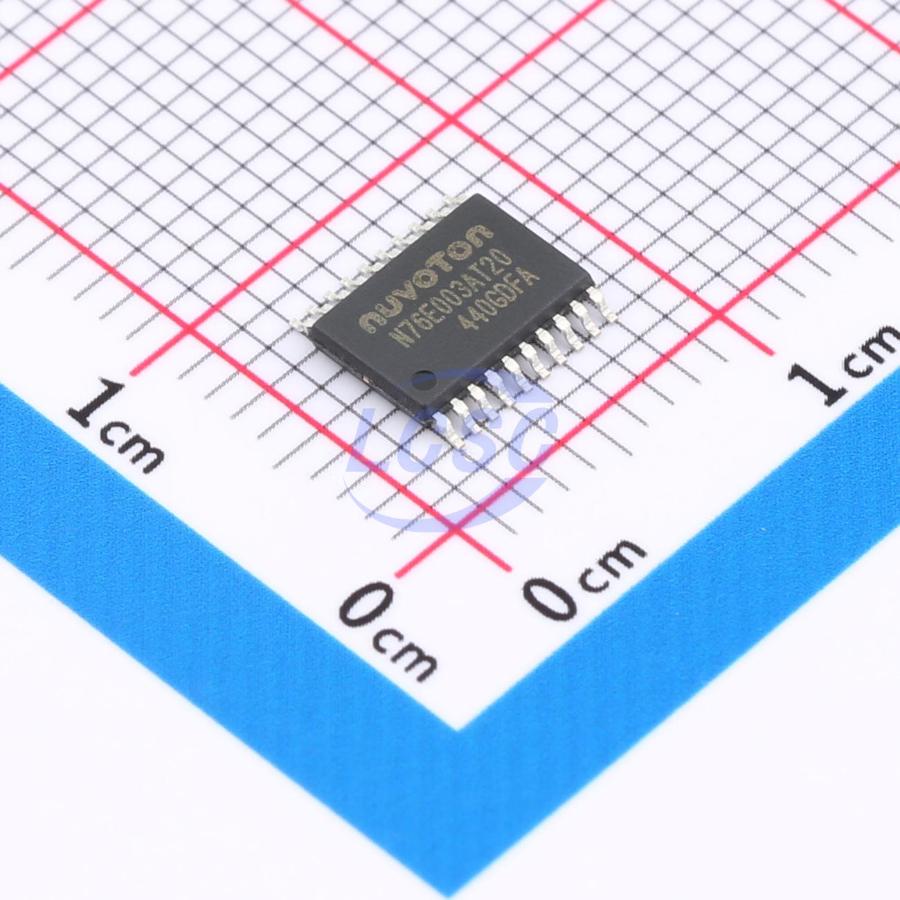

N76E003AT20-T
51 Series 8 Bit 16MHz TSSOP-20 Microcontrollers
TSSOP-20RoHSActive
1T 8051-based Microcontroller
- Manufacturer
- NUVOTON
- Manufacturer part #
- N76E003AT20-T
- Store part #
- C382509
- Package / case
- TSSOP-20
- Category
- Microcontrollers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47,073 in stock
#C382509
Stock & price checked 5 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.24 | ₹133.24 |
| 10+ | ₹111.50 | ₹1,115.00 |
| 30+ | ₹100.85 | ₹3,025.50 |
| 100+ | ₹89.99 | ₹8,999.00 |
| 500+ | ₹74.11 | ₹37,055.00 |
| 1,000+ | ₹70.86 | ₹70,860.00 |
1 × ₹133.24
₹133.24
excl. GST
₹157.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
N76E003AT20-T
₹133.24 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 17
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 2.4V~5.5V
- Program Memory Type
- FLASH
- Program Storage Size
- 18KB
- CPU Core
- 51 Series
- Core Size
- 8 Bit
- CPU Maximum Speed
- 16MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
- The N76E003 is an embedded flash type, 8-bit high performance 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. - The N76E003 contains a up to 18K Bytes of main Flash called APROM, in which the contents of User Code resides. The N76E003 Flash supports In-Application-Programming (IAP) function, which enables on-chip firmware updates. IAP also makes it possible to configure any block of User Code array to be used as non-volatile data storage, which is written by IAP and read by IAP or MOVC instruction. There is an additional Flash called LDROM, in which the Boot Code normally resides for carrying out In-System-Programming (ISP). The LDROM size is configurable with a maximum of 4K Bytes. To facilitate programming and verification, the Flash allows
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STC32G8K64-33A-TSSOP20#C55042000STC Micro · TSSOP-20 | STC Micro | TSSOP-20 | 24 | ₹45.75 · 24 in stock | View | |
| STC32CL8K64-33A-TSSOP20#C55041999STC Micro · TSSOP-20 | STC Micro | TSSOP-20 | 57 | ₹45.89 · 57 in stock | View | |
 | STC8C2K64S2-36I-TSSOP20#C3013125STC Micro · TSSOP-20 | STC Micro | TSSOP-20 | 80 | ₹96.05 · 80 in stock | View |
| N79E845AWG#C7452101NUVOTON · TSSOP-20 | NUVOTON | TSSOP-20 | On request | Price on request | Quote | |
