TECH PUBLICDatasheet (PDF)

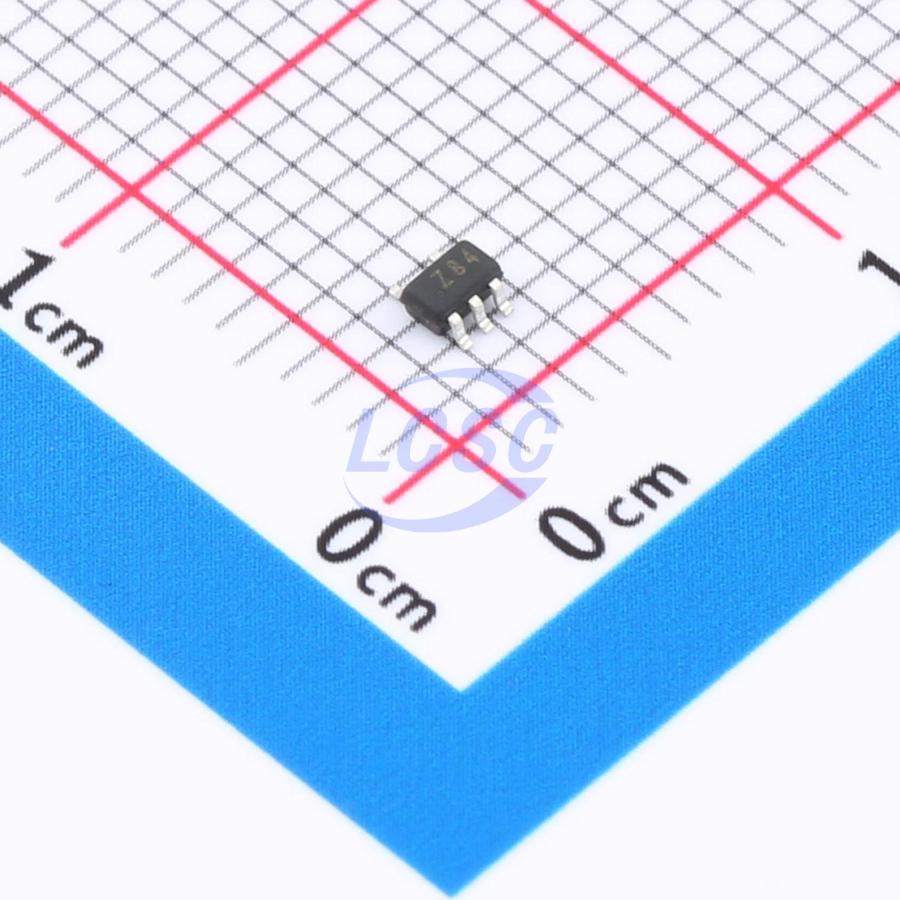

NC7SZ384P5X-TP
1 Circuit IC SWITCH 3Ω SOT-353
SOT-353RoHSActive
SINGLE-CHANNEL 3Q SPST Analog SwitcheS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ384P5X-TP
- Store part #
- C48543205
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C48543205
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.04 | ₹75.20 |
| 50+ | ₹11.83 | ₹591.50 |
| 150+ | ₹10.23 | ₹1,534.50 |
| 500+ | ₹9.02 | ₹4,510.00 |
| 3,000+ | ₹8.06 | ₹24,180.00 |
| 6,000+ | ₹7.57 | ₹45,420.00 |
5 × ₹15.04
₹75.20
excl. GST
₹88.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ384P5X-TP
₹75.20 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 3Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.6V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This device is a low-voltage SPDT analog switch designed for signal multiplexing in chopping, modulation/demodulation, signal gating, and A/D and D/A conversion systems.
Applications
- Mobile phones and TWS earphones
- Audio, video, UART, USB2.0 signal and power routing
Key features
- Low on-resistance, Ron = 3Ω
- 1.8V logic-compatible control pin
- Can override VCC, enabling true isolation even during power failure
- High off-state isolation: -100dB @ 100KHz
- Low inter-channel crosstalk: -97dB @ 100KHz
- High bandwidth (-3dB @ 400MHz), suitable for USB2.0 high-speed signal routing
- Low quiescent current (<2uA) with wide supply voltage range (1.5V ~ 5.5V)
