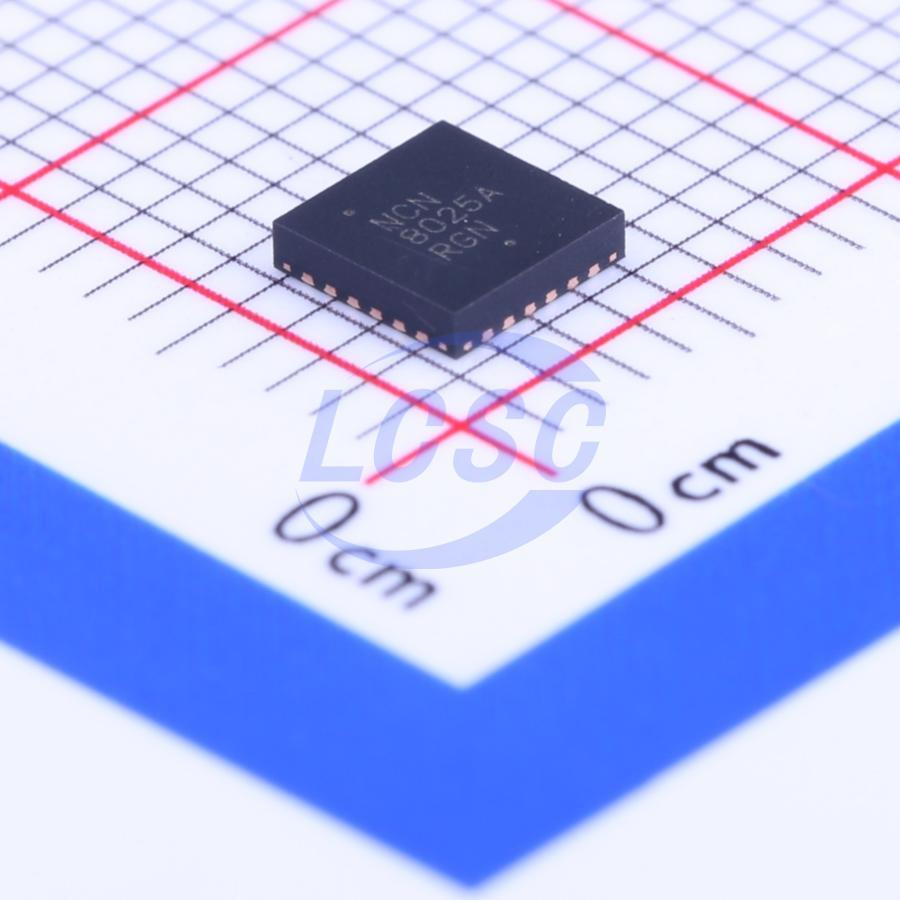

NCN8025AMNTXG

-40℃~+85℃ QFN-24-EP(4x4) Specialized RoHS

QFN-24-EP(4x4)ROHS3 CompliantActive

Compact SMART CARD Interface IC

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,436 in stock

#C122672

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹94.09

₹94.09

excl. GST

₹111.03 incl. 18% GST

NCN8025AMNTXG

₹94.09 for 1 + GST

Specifications

Single IC card interface
Fully compliant with ISO 7816−3, EMV 4.3, UICC and related standards, including NDS and other STB standards (e.g., Nagravision, Irdeto, etc.)
3 bidirectional buffered level translators (C4, C7, and C8) (QFN−24) − 1 bidirectional I/O level translator for compact QFN−16 version
Regulated card supply of 1.8 V, 3.0 V, or 5.0 V ± 5%, e.g., ICC ≤ 70 mA
Regulator supply: VDDP = 2.7 V to 5.5 V (@ 1.8 V), 3.0 V to 5.5 V (@ 3.0 V) & 4.85 V to 5.5 V (@ 5.0 V)
Independent supply range on controller interface, e.g., VDD = 2.7 V to 5.5 V
Class A, B, and C smart card support
Short-circuit protection on all card pins
Up to 27 MHz input clock support with internal division ratios of 1/1, 1/2, 1/4, and 1/8 via CLKDIV1 and CLKDIV2
Human body model ESD protection up to +8 kV on card pins
Activation/deactivation sequences (ISO7816 sequencer)
Fail-safe mechanism enabling automatic device deactivation under overload, overtemperature, card removal, or power loss conditions (OCP, OTP, UVP)
Interrupt signal INT for card presence and fault detection
External undervoltage lockout threshold adjustment on VDD (PORADJ pin) (except QFN−16)
Available in 2 package options: QFN−24 (NCN8025A) and QFN−16 (NCN8025)
Lead-free devices
