onsemiDatasheet (PDF)

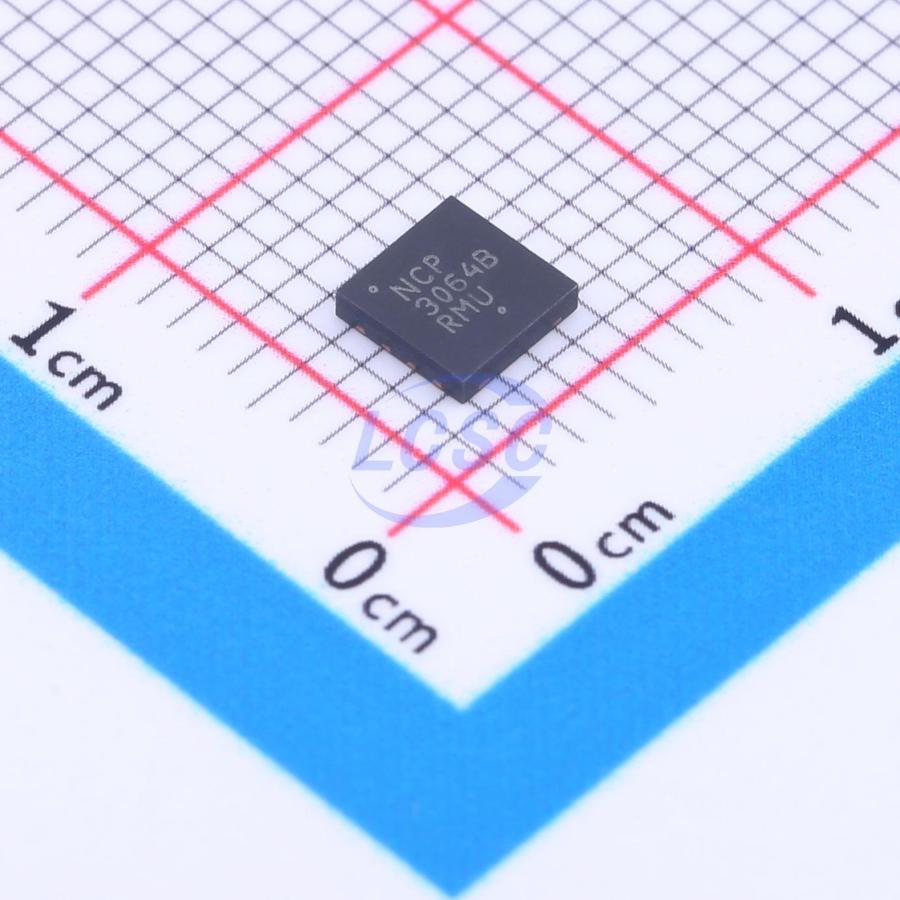

NCP3064BMNTXG
150kHz Adjustable 1.25V~40V 1.5A DFN-8-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-8-EP(4x4)ROHS3 CompliantActive
Inverting Converter, Switching Regulator - Buck Boost, ON/OFF Function
- Manufacturer
- onsemi
- Manufacturer part #
- NCP3064BMNTXG
- Store part #
- C894982
- Package / case
- DFN-8-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C894982
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.01 | ₹200.01 |
| 10+ | ₹195.51 | ₹1,955.10 |
| 30+ | ₹192.72 | ₹5,781.60 |
| 100+ | ₹189.72 | ₹18,972.00 |
1 × ₹200.01
₹200.01
excl. GST
₹236.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP3064BMNTXG
₹200.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Protection latch
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~40V
- Output Current
- 1.5A
- Quiescent Current
- 85uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The NCP3064 is a monolithic power switching regulator optimized for dc to dc converter applications. The combination of its features enables the system designer to directly implement step−up, step−down, and voltage−inverting converters with a minimum number of external components. Potential applications include cost sensitive consumer products as well as equipment for industrial markets.
Applications
- Step−Down, Step−Up and Inverting supply applications
- High Power LED Lighting
- Battery Chargers
Key features
- Input Voltage Range from 3.0 V to 40 V
- Logic Level Shutdown Capability
- Low Power Standby Mode, Typical 100 μA
- Output Switch Current to 1.5 A
- Adjustable Output Voltage Range
- 150 kHz Frequency Operation
- Precision 1.5% Reference
- Internal Thermal Shutdown Protection
- Cycle−by−Cycle Current Limiting
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb −Free Devices
