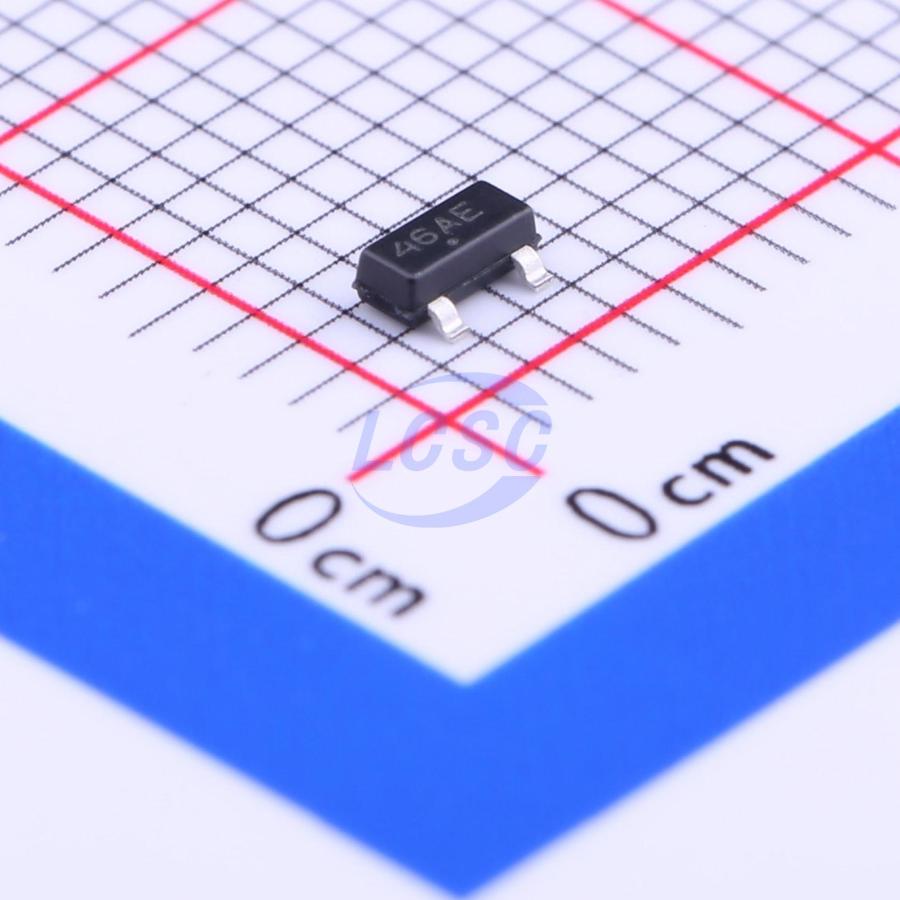

NCP51460SN33T1G
3.3V ±1% 4.2V~28V 20mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Micropower Precision Voltage Reference
- Manufacturer
- onsemi
- Manufacturer part #
- NCP51460SN33T1G
- Store part #
- C233715
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,970 in stock
#C233715
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.53 | ₹137.65 |
| 50+ | ₹22.05 | ₹1,102.50 |
| 150+ | ₹19.70 | ₹2,955.00 |
| 500+ | ₹16.78 | ₹8,390.00 |
| 3,000+ | ₹15.47 | ₹46,410.00 |
| 6,000+ | ₹14.69 | ₹88,140.00 |
5 × ₹27.53
₹137.65
excl. GST
₹162.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP51460SN33T1G
₹137.65 for 5 + GST
Specifications
- Quiescent Current
- 220uA
- Output Voltage
- 3.3V
- Tolerance
- ±1%
- Voltage - Supply
- 4.2V~28V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 12uVp-p
- Output Current
- 20mA
- Operating Temperature
- 0℃~+100℃
- Noise - 10Hz to 10kHz
- 18uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The NCP51460 is a high performance, low power precision voltage reference. This device combines very high accuracy, low power dissipation and small package size. It can supply output current up to 20 mA at a 3.3 V fixed output voltage with excellent line and load regulation characteristics making it ideal for precision regulator applications. It is designed to be stable with or without an output capacitor. The protective features include Short Circuit and Reverse Input Voltage Protection. The NCP51460 is packaged in a 3−lead surface mount SOT−23 package.
Applications
- Handheld Instruments
- Precision Regulators
- Data Acquisition Systems
- High Accuracy Micropower Supplies
Key features
- Fixed Output Voltage 3.3 V
- VOUT Accuracy 1% over 0 to +100°C
- Wide Input Voltage Range up to 28 V
- Low Quiescent Current
- Low Noise
- Reverse Input Voltage Protection
- Stable Without an Output Capacitor
- Available in 3 leads SOT−23 Package
- This is a Pb-Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX6035BAUR30+T#C1575517MAXIM · SOT-23-3 | MAXIM | SOT-23-3 | 4 | ₹1,026.45 · 4 in stock | View |
