NexperiaDatasheet (PDF)

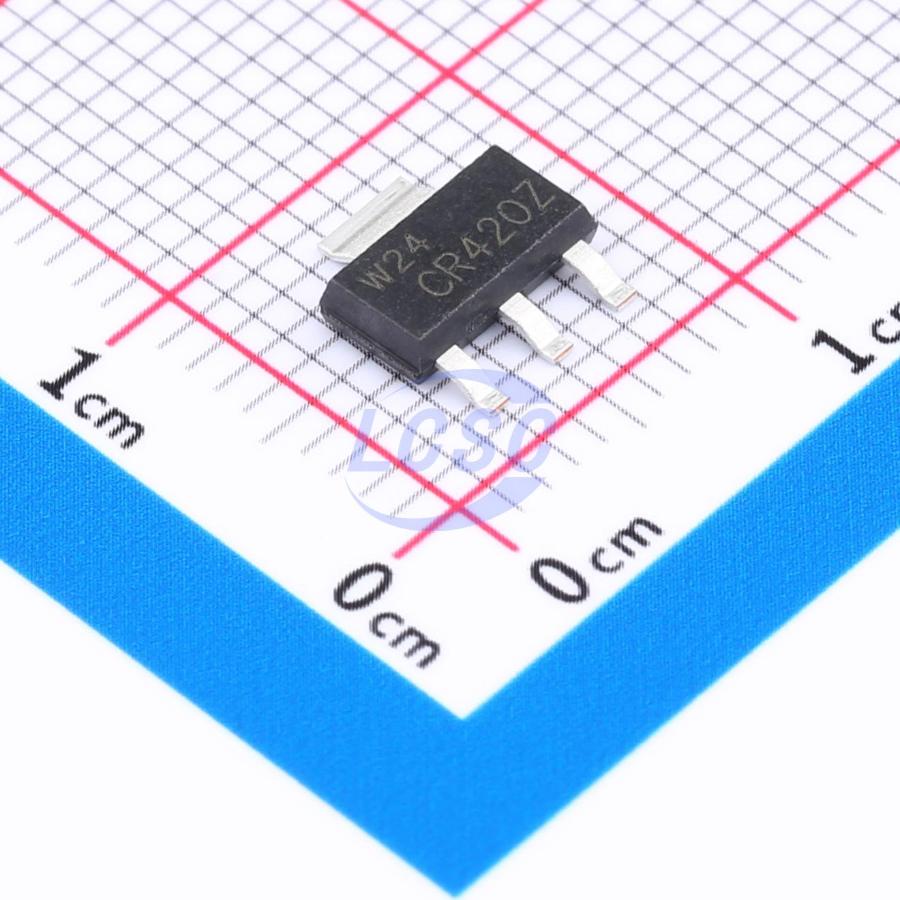

NCR420ZX
40V 1 DC-DC 150mA 40V SOT-223-4 LED Drivers ICs RoHS
SOT-223-4ROHS3 CompliantActive
150mA LED driver in SOT223
- Manufacturer
- Nexperia
- Manufacturer part #
- NCR420ZX
- Store part #
- C551556
- Package / case
- SOT-223-4
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,985 in stock
#C551556
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.29 | ₹91.29 |
| 10+ | ₹73.07 | ₹730.70 |
| 30+ | ₹63.97 | ₹1,919.10 |
| 100+ | ₹55.08 | ₹5,508.00 |
| 500+ | ₹47.06 | ₹23,530.00 |
| 1,000+ | ₹44.24 | ₹44,240.00 |
1 × ₹91.29
₹91.29
excl. GST
₹107.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NCR420ZX
₹91.29 for 1 + GST
Specifications
- Output Voltage
- 40V
- Switch Tube (Built-In/External)
- Built-in
- Operating temperature
- -55℃~+150℃
- Number of Channels
- 1
- Type
- DC-DC
- Output Current
- 150mA
- Voltage - Input(DC)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
LED driver consisting of resistor-equipped NPN transistor with two diodes on one chip in a medium power SOT223 (SC73) plastic package.
Applications
- Constant current LED driver
- Generic constant current source
- Automotive applications (for example: interior lighting, dash board, instrumentation, number plate light)
- Increase stabilized output current by paralleling drivers
Key features
- Stabilized output current of 10 mA without external resistor
- Stabilized output current adjustable up to 150 mA when an external resistor is used
- High current accuracy at supply voltage variation
- Low voltage overhead of 1.4 V
- Reduces component count and board space
- High power dissipation of 1250 mW
- Supply voltage up to 40 V
- Digital PWM input up to 10 kHz frequency for NCR421Z
- AEC-Q101 qualified
