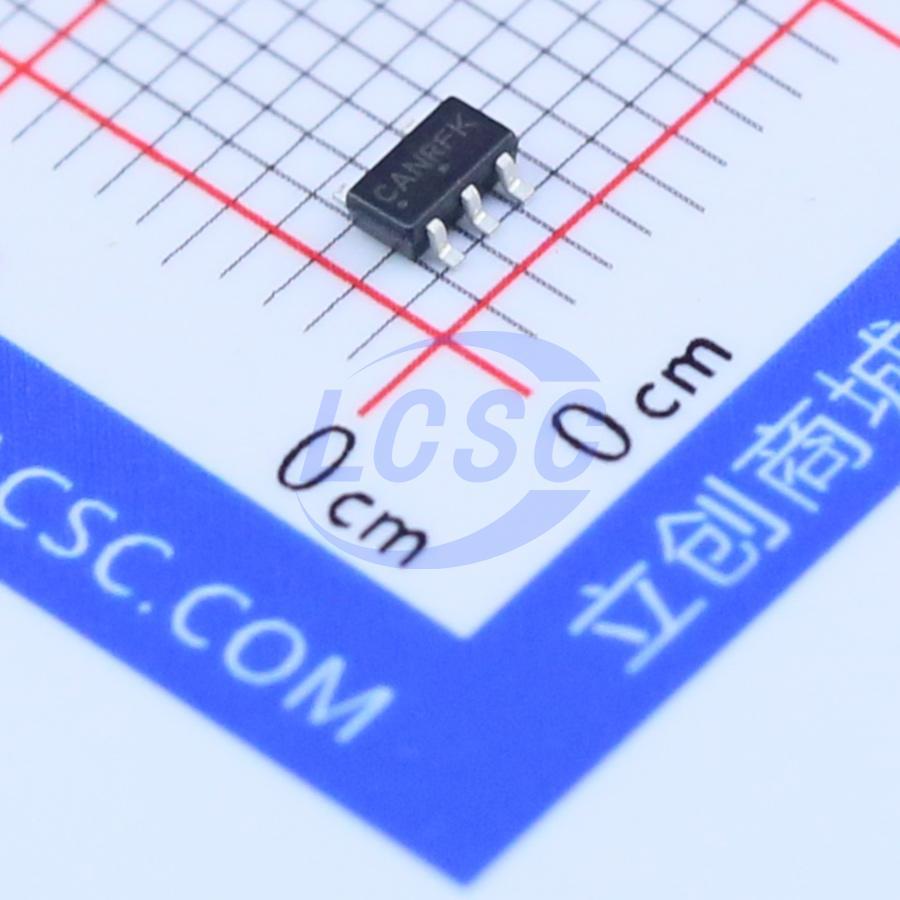

NCS2202SN2T1G
17uA 500uV Rail-to-Rail Input, Rail-to-Rail Output TSOP-5 Comparators RoHS
Low Voltage Comparators
- Manufacturer
- onsemi
- Manufacturer part #
- NCS2202SN2T1G
- Store part #
- C94396
- Package / case
- TSOP-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,989 in stock
#C94396
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.53 | ₹104.53 |
| 10+ | ₹85.62 | ₹856.20 |
| 30+ | ₹76.06 | ₹2,281.80 |
| 100+ | ₹66.72 | ₹6,672.00 |
| 500+ | ₹61.07 | ₹30,535.00 |
| 1,000+ | ₹58.24 | ₹58,240.00 |
1 × ₹104.53
₹104.53
excl. GST
₹123.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCS2202SN2T1G
₹104.53 for 1 + GST
Specifications
- Features
- Built-in hysteresis
- Ib - Input Bias Current
- 1pA
- Output Type
- Open-drain
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 1.1us
- Input Hysteresis Voltage (Vhys)
- 20mV
- Quiescent Current(Iq)
- 17uA
- Vos - Input Offset Voltage
- 500uV
- Maximum Power Supply Range (Vdd-Vss)
- 6V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Operating Temperature
- -40℃~+105℃
- Single Supply
- 0.85V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The NCS2200 Series is a sub−one volt, low power comparator family. These devices consume only 10 μA of supply current. They are guaranteed to operate at a low voltage of 0.85 V which allows them to be used in systems that require less than 1.0 V and are fully operational up to 6.0 V which makes them convenient for use in both 3.0 V and 5.0 V systems. Additional features include no output phase inversion with overdriven inputs, internal hysteresis, which allows for clean output switching, and rail−to−rail input and output performance. The NCS2200 Series is available in complementary and open drain outputs and a variety of packages.
Applications
- Single Cell NiCd/NiMH Battery Powered Applications
- Cellphones, Smart Phones
- Alarm and Security Systems
- Personal Digital Assistants
Key features
- Operating Voltage of 0.85 V to 6.0 V
- Rail−to−Rail Input/Output Performance
- Low Supply Current of 10 μA
- No Phase Inversion with Overdriven Input Signals
- Glitchless Transitioning in or out of Tri−State Mode
- Complementary or Open Drain Output Configuration
- Internal Hysteresis
- Propagation Delay of 1.0 μs for NCS2200
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
