onsemi

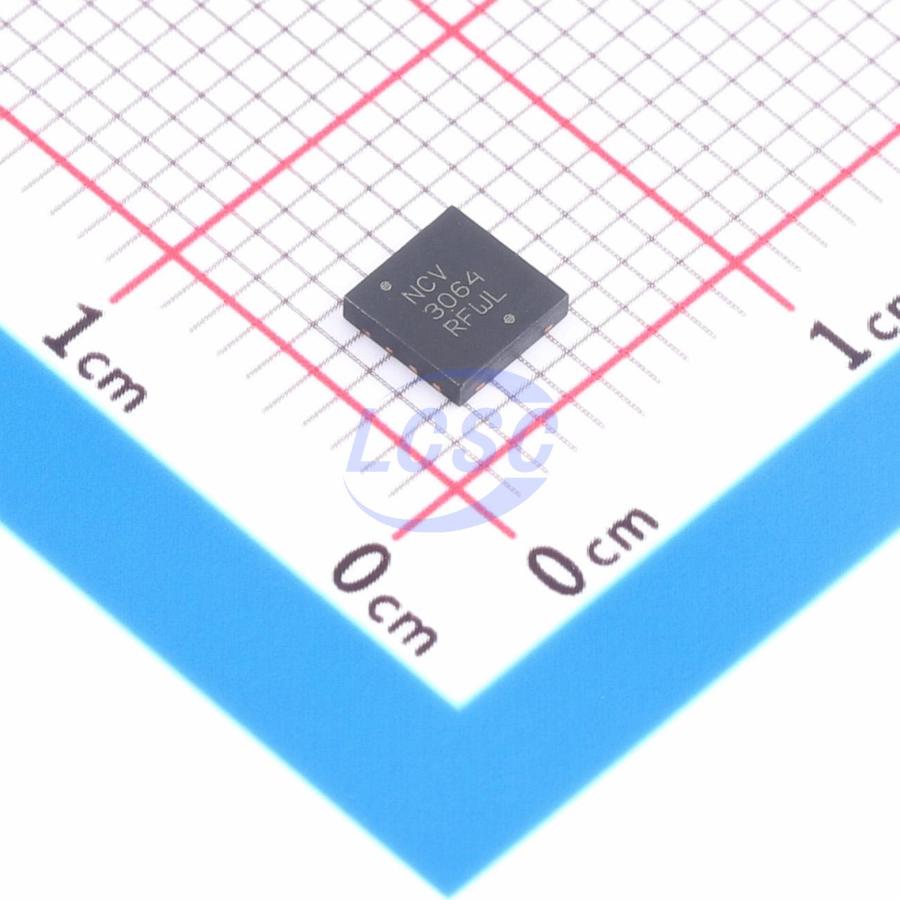

NCV3064MNTXG

Buck-Boost 150kHz Adjustable 1.5A DFN-8-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-8-EP(4x4)ROHS3 CompliantActive

Inverting Converter, Switching Regulator - Buck Boost, ON/OFF Function

Manufacturer: onsemi
Manufacturer part #: NCV3064MNTXG
Store part #: C603896
Package / case: DFN-8-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

259 in stock

#C603896

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹280.24	₹280.24
10+	₹254.97	₹2,549.70
30+	₹239.19	₹7,175.70
100+	₹223.20	₹22,320.00
500+	₹215.86	₹1,07,930.00
1,000+	₹212.62	₹2,12,620.00

Quantity (min 1)

1 × ₹280.24

₹280.24

excl. GST

₹330.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

NCV3064MNTXG

₹280.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Number of Outputs: 1
Function: Buck-Boost
Frequency - Switching: 150kHz
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck;Boost;Inverting
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 85uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

The NCP3064 is a monolithic power switching regulator optimized for dc to dc converter applications. The combination of its features enables the system designer to directly implement step−up, step−down, and voltage−inverting converters with a minimum number of external components. Potential applications include cost sensitive consumer products as well as equipment for industrial markets.

Applications

Step−Down, Step−Up and Inverting supply applications
High Power LED Lighting
Battery Chargers

Key features

Input Voltage Range from 3.0 V to 40 V
Logic Level Shutdown Capability
Low Power Standby Mode, Typical 100 μA
Output Switch Current to 1.5 A
Adjustable Output Voltage Range
150 kHz Frequency Operation
Precision 1.5% Reference
Internal Thermal Shutdown Protection
Cycle−by−Cycle Current Limiting
NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
These are Pb −Free Devices
