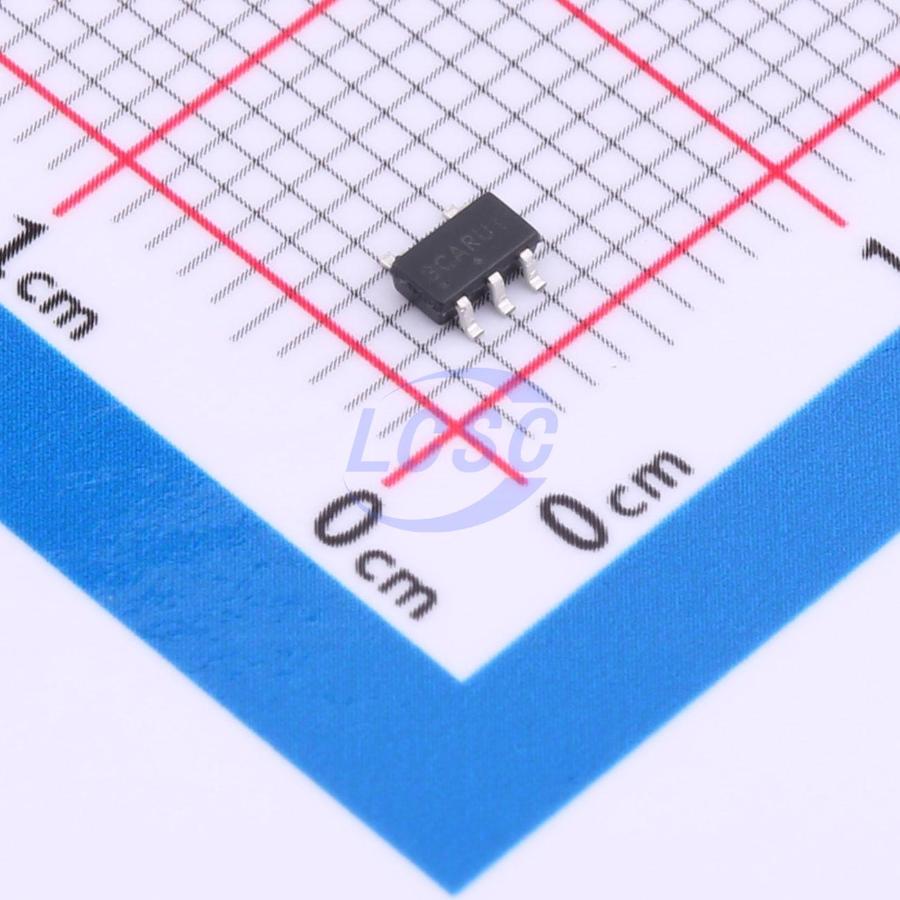

NCV331SN3T1G
1 40uA 9mV TSOP-5 Comparators RoHS
Single, Dual, Quad General Purpose, Low Voltage Comparators
- Manufacturer
- onsemi
- Manufacturer part #
- NCV331SN3T1G
- Store part #
- C463361
- Package / case
- TSOP-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C463361
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.27 | ₹221.35 |
| 50+ | ₹35.52 | ₹1,776.00 |
| 150+ | ₹31.77 | ₹4,765.50 |
| 500+ | ₹27.08 | ₹13,540.00 |
| 3,000+ | ₹25.00 | ₹75,000.00 |
| 6,000+ | ₹23.75 | ₹1,42,500.00 |
5 × ₹44.27
₹221.35
excl. GST
₹261.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV331SN3T1G
₹221.35 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 1us;500ns;800ns;200ns
- Quiescent Current(Iq)
- 40uA
- Vos - Input Offset Voltage
- 9mV
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The LMV331 is a CMOS single channel, general purpose, low voltage comparator. The LMV393 and LMV339 are dual and quad channel versions, respectively. The LMV331/393/339 are specified for 2.7 V to 5 V performance, have excellent input common- mode range, low quiescent current, and are available in several space saving packages. The LMV331 is available in 5- pin SC- 70 and TSOP- 5 packages. The LMV393 is available in a 8- pin Micro8, SOIC- 8, and a UDFN8 package, and the LMV339 is available in a SOIC- 14 and a TSSOP- 14 package. The LMV331/393/339 are cost effective solutions for applications where space saving, low voltage operation, and low power are the primary specifications in circuit design for portable applications.
Applications
- Battery Monitors
- Notebooks and PDA's
- General Purpose Portable Devices
- General Purpose Low Voltage Applications
Key features
- Guaranteed 2.7 V and 5 V Performance
- Input Common-mode Voltage Range Extends to Ground
- Open Drain Output for Wired-OR Applications
- Low Quiescent Current: 60 μA / channel TEMP @ 5 V
- Low Saturation Voltage 200 mV TEMP @ 5 V
- Propagation Delay 200 ns TEMP @ 5 V
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV331IDBVR#C34731TI · SOT-23-5 | TI | SOT-23-5 | 2,31,595 | ₹16.66 · 2,31,595 in stock | View |
