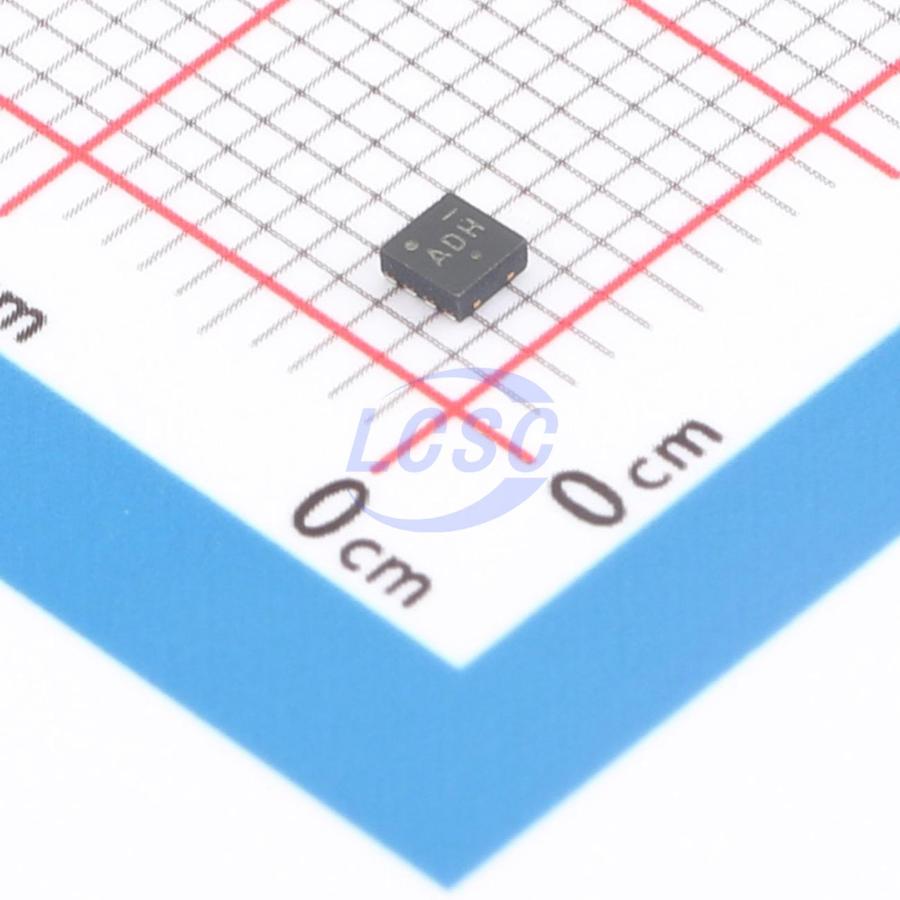

NCV6323FELMTW10TBG

NCV6323F is a synchronous Buck converter optimized to supply different sub−systems from a pre−regulator supply rail in the 2.8 V to 5.5 V range. The device is able to deliver up to 1.6 A DC (85°C ambient temperature) on a fixed output voltage. Operation with 3 MHz switching frequency allows employing small size inductor and capacitors. Technology and internal structure allows the IC to operate from a wide input voltage range. Synchronous rectification offers improved system efficiency and integrated feedback network allows very simple and straightforward implementation to power supply designers with only a few components to select. The NCV6323F is housed in in a space saving Wettable flank DFN8, 2x2 mm (0.8mm thickness), 0.5 mm pitch package.

Applications

• Automotive Advanced Driver−Assistance System (ADAS)
• Front Camera – Rear View Camera
• Surround View
• Blind Spot Monitoring
• Automotive Telematics Clusters – Camera
• Automotive Space−Optimized Systems
• Point Of Load

Key features

• 2.8 V to 5.5 V Input Voltage Range
• Fixed Output Voltage
• Up to 1.6 A DC Output Current (85°C Ambient Temperature)
• Up to 1.2 A DC Output Current (105°C Ambient Temperature)
• 3 MHz Switching Frequency
• Synchronous Rectification
• Soft Start / Over Current Protection
• Thermal Shutdown Protection
• Output Active Discharge (Disabled)
• Enable Input / Power Good (PG) Option
• WDFNW8, 2x2 mm, 0.5 mm Pitch Package
• Maximum 0.8 mm Thickness
• AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
