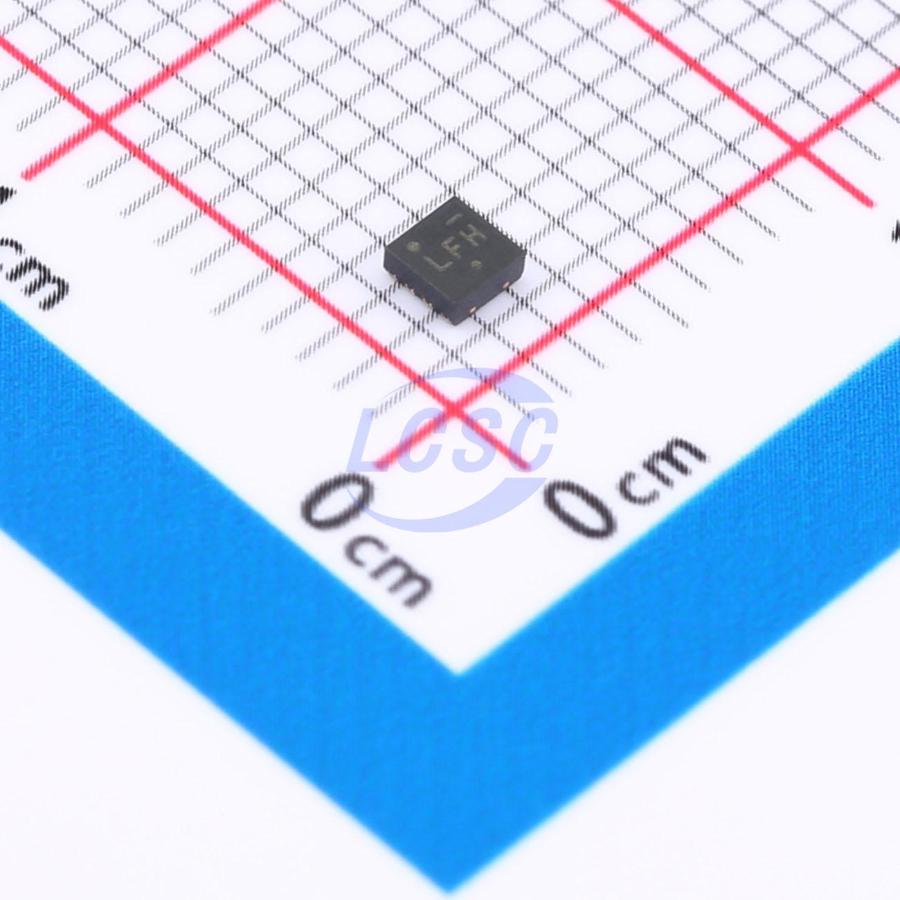

NCV6324CMTAAWTBG

The NCP/NCV6324, a family of synchronous buck converters, which is optimized to supply different sub systems of portable applications powered by one cell Li−ion or three cell Alkaline/NiCd/ NiMH batteries. The devices are able to deliver up to 2A on an external adjustable voltage. Operation with 3 MHz switching frequency allows employing small size inductor and capacitors. Input supply voltage feedforward control is employed to deal with wide input voltage range. Synchronous rectification and automatic PWM/PFM power save mode offer improved system efficiency. The NCP/NCV6324 is in a space saving, low profile 2.0 x 2.0 x 0.75 mm WDFN8 package or a WDFNW8 wettable flank package.

Applications

• Cellular Phones, Smart Phones, and PDAs
• Portable Media Players
• Digital Still Cameras
• Wireless and DSL Modems
• USB Powered Devices
• Point of Load
• Game and Entertainment System

Key features

• 2.5 V to 5.5 V Input Voltage Range
• External Adjustable Voltage
• Up to 2 A Output Current
• 3 MHz Switching Frequency
• Synchronous Rectification
• Automatic Power Save (NCx6324B) or External Mode Selection (NCx6324C)
• Enable Input
• Power Good Output Option (NCx6324B)
• Soft Start
• Over Current Protection
• Active Discharge When Disabled
• Thermal Shutdown Protection
• WDFN−8, 2 x 2 mm , 0.5 mm Pitch Package and WDFNW8, 2 x 2 mm , 0.5 mm Pitch Package with Wettable Flanks
• Maximum 0.8mm Height for Super Thin Applications
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
