onsemiDatasheet (PDF)

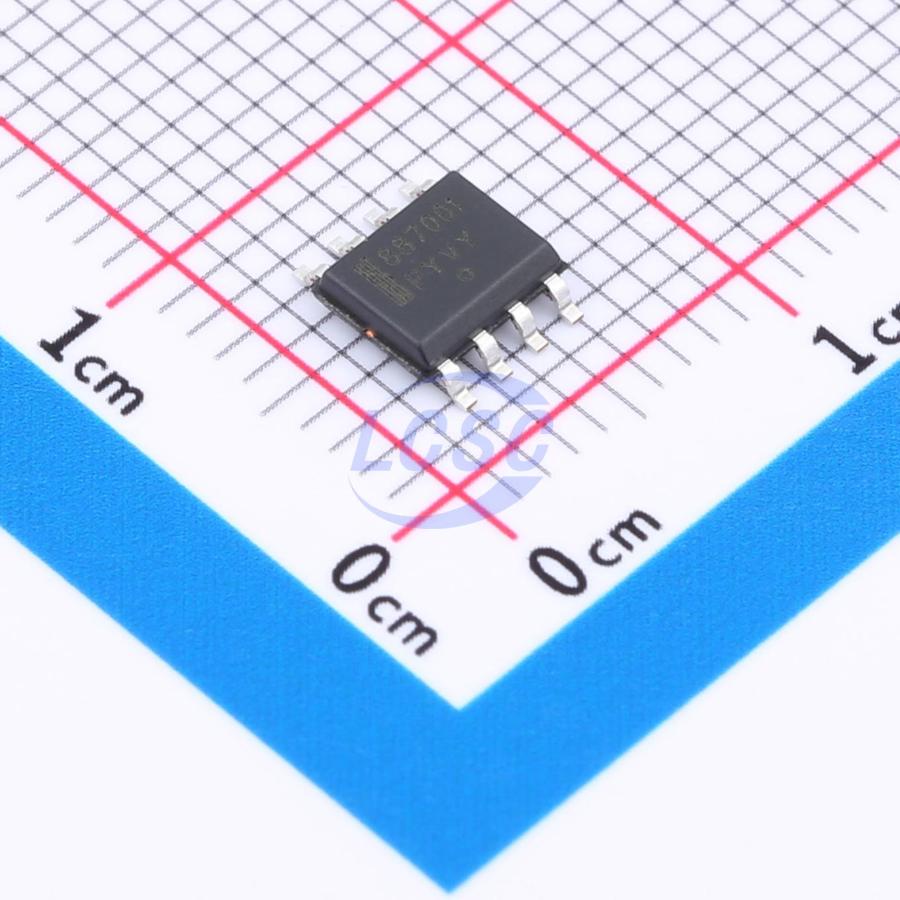

NCV887001D1R2G
800mA 1 Adjustable Boost SOIC-8 DC DC Switching Controllers RoHS
SOIC-8ROHS3 CompliantActive
Non-Synchronous Boost Controller
- Manufacturer
- onsemi
- Manufacturer part #
- NCV887001D1R2G
- Store part #
- C604103
- Package / case
- SOIC-8
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,701 in stock
#C604103
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.43 | ₹214.43 |
| 10+ | ₹197.44 | ₹1,974.40 |
| 30+ | ₹186.78 | ₹5,603.40 |
| 100+ | ₹175.89 | ₹17,589.00 |
| 500+ | ₹170.89 | ₹85,445.00 |
| 1,000+ | ₹168.71 | ₹1,68,710.00 |
1 × ₹214.43
₹214.43
excl. GST
₹253.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV887001D1R2G
₹214.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Synchronous Rectifier
- No
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;External compensation;Built-in LDO regulator;Overcurrent Protection
- Output Current
- 800mA
- Number of Channels
- 1
- Topology
- Boost
- Operating Voltage
- 3.2V~40V
- Frequency - Switching
- 100kHz
- Output Type
- Adjustable
- Switch tube (built-in/external)
- External
- Function
- Boost
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
The NCV8870 is an adjustable output non−synchronous boost controller which drives an external N-channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver.
Key features
- Peak Current Mode Control with Internal Slope Compensation
- 1.2 V ±2% Reference voltage
- Fixed Frequency Operation
- Wide Input Voltage Range of 3.2 V to 40 Vdc, 45 V Load Dump
- Input Undervoltage Lockout (UVLO)
- Internal Soft-Start
- Low Quiescent Current in Sleep Mode
- Cycle-by-Cycle Current Limit Protection
- Hiccup-Mode Overcurrent Protection (OCP)
- Hiccup-Mode Short-Circuit Protection (SCP)
- Thermal Shutdown (TSD)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- This is a Pb-Free Device
