onsemi

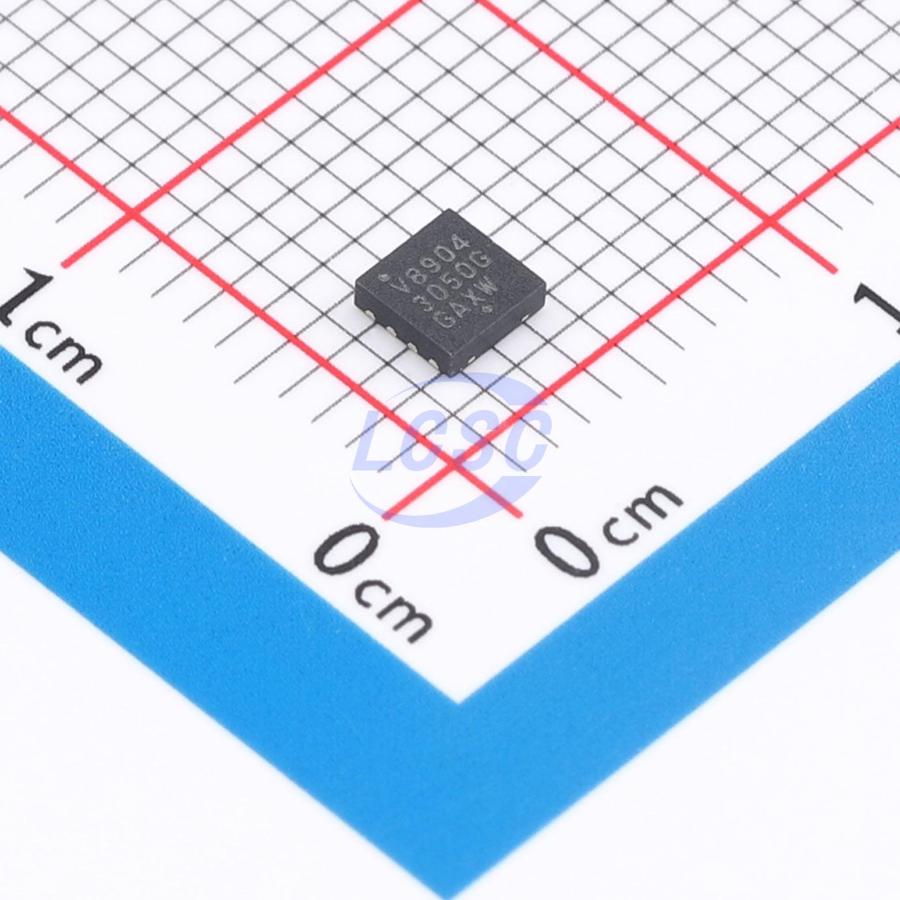

NCV890430MW50TXG

2MHz Step-down type Fixed 600mA 5V DFN-8-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-8-EP(3x3)ROHS3 CompliantActive

Automotive Synchronous Buck Regulator with 100% Duty Cycle

Manufacturer: onsemi
Manufacturer part #: NCV890430MW50TXG
Store part #: C604119
Package / case: DFN-8-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

33 in stock

#C604119

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹391.54	₹391.54
10+	₹382.55	₹3,825.50
30+	₹376.26	₹11,287.80
100+	₹370.19	₹37,019.00

Quantity (min 1)

1 × ₹391.54

₹391.54

excl. GST

₹462.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV890430MW50TXG

₹391.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 2MHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Hiccup current limiting;Frequency synchronization;Operating status indication
Output Type: Fixed
Topology: Buck
Operating Voltage: 3.5V~37V
Switch tube (built-in/external): Built-in
Output Current: 600mA
Output Voltage: 5V
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.162 g

Overview

The NCV890430 is a fixed-frequency Synchronous Buck regulator intended for Automotive, battery-connected applications that operate with up to a 45 V input supply. It is suitable for automotive systems requiring low noise and low shutdown currents that also need to operate at low input voltage close to the output voltage. A reset pin (with adjustable delay) simplifies interfacing with a microcontroller. This part also features an enable input that can either be connected to a low voltage (such as a micro-controller output) or high voltage (such as the battery input), and a synchronization input. The NCV890430 also provides several protection features expected in automotive power supply systems such as current limit, short circuit protection, and thermal shutdown. In addition, the high switching frequency produces low output voltage ripple even when using small inductor values and all-ceramic input output filter capacitors forming a space-efficient switching regulator solution. The NCV890430 is a high-frequency synchronous switch-mode regulator with current-mode control, fixed output voltage and fixed internal closed-loop compensation, accepting a wide input voltage range typical to automotive applications. The use of a P-channel high-side MOSFET simplifies the driving scheme (no bootstrap circuitry needed), and enables a duty cycle of 100% for low dropout operation at low input voltage.

Applications

Automotive Infotainment and Instrumentation
Automotive Body Applications
Linear Regulator Replacement
Rear View Camera

Key features

Internal 550 mΩ P-channel and 300 mΩ N-channel Power Switches
Capable of 100% Duty Cycle Operation
VIN Operating Range 3.5 V to 37 V
Withstands Load Dump to 45 V
2 MHz Free-running Switching Frequency
Low Shutdown Current <10 μA
High Voltage Enable Pin
Synchronization Input Pin
Maximum DC Output Current of at Least 0.6 A
Fixed Output Voltage (5 V, 3.3 V, 2.5 V Versions)
±2% Output Voltage Accuracy
DFN Package with Wettable Flanks (Pin Edge Plating per JEDEC MO220)
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These are Pb-Free Devices
