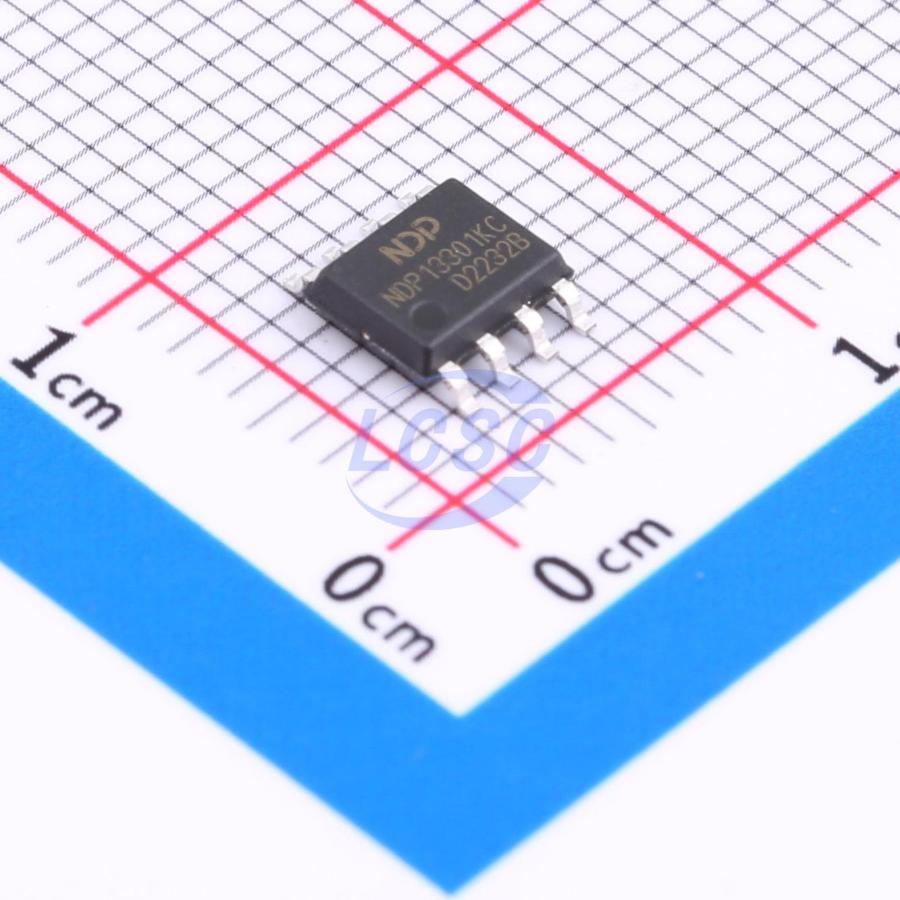

NDP13301KC
110kHz Step-down type Adjustable 3.3V~25V 3A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
High Efficiency Synchronous Step-Down DC/DC Converter
- Manufacturer
- NDP
- Manufacturer part #
- NDP13301KC
- Store part #
- C17702288
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C17702288
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.02 | ₹195.10 |
| 50+ | ₹30.59 | ₹1,529.50 |
| 150+ | ₹26.98 | ₹4,047.00 |
| 500+ | ₹22.46 | ₹11,230.00 |
| 2,500+ | ₹20.45 | ₹51,125.00 |
| 4,000+ | ₹19.25 | ₹77,000.00 |
5 × ₹39.02
₹195.10
excl. GST
₹230.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDP13301KC
₹195.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Number of Outputs
- 1
- Frequency - Switching
- 110kHz
- Function
- Step-down type
- Features
- Hiccup current limiting;Cable compensation;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.6V~30V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V~25V
- Output Current
- 3A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
NDP13301KC is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a constant frequency, average current mode control architecture. Capable of delivering up to 3.0A continuous load with excellent line and load regulation. The device operates from an input voltage range of 4.6V to 30V and provides an adjustable output voltage from 3.3V to 25V. The NDP13301KC features short circuit and thermal protection circuits to increase system reliability. The internal soft-start avoids input inrush current during startup. The NDP13301KC require a minimum number of external components and a wide array of protection features to enhance reliability
Applications
- Car Charger
- Rechargeable Portable Devices
- Networking Systems
- Distributed Power Systems
Key features
- Wide VIN Range: 4.6V to 30V
- 3.0A Continuous Output Current
- Up to 94% Efficiency
- CC/CV Mode Control
- 100% Max Duty Cycle
- Built in Adjustable Line-Compensation
- Adjustable Output Voltages ± 2% Output Voltage Accuracy ± 5% Current Limit Accuracy
- Integrated 56mΩ High Side Switch
- Integrated 29mΩ Low Side Switch
- Frequency(110KHz)
- Burst Mode Operation at Light Load
- Internal loop Compensation
- Internal Soft Start Available in SOP8 Package
