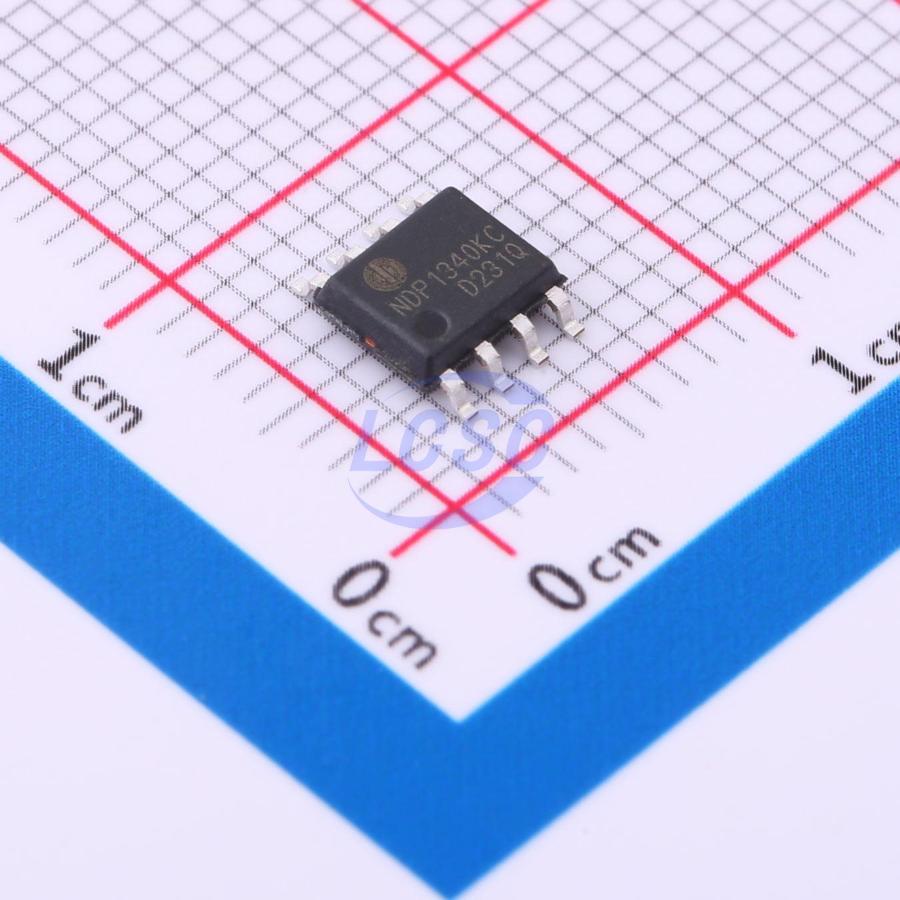

NDP1340KC
130kHz~300kHz Step-down type Adjustable 3.6V~20V 4A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
High Efficiency Synchronous Step-Down DC/DC Converter
- Manufacturer
- NDP
- Manufacturer part #
- NDP1340KC
- Store part #
- C7420574
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,985 in stock
#C7420574
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.49 | ₹257.45 |
| 50+ | ₹40.76 | ₹2,038.00 |
| 150+ | ₹36.16 | ₹5,424.00 |
| 500+ | ₹30.43 | ₹15,215.00 |
| 2,500+ | ₹27.86 | ₹69,650.00 |
| 4,000+ | ₹26.34 | ₹1,05,360.00 |
5 × ₹51.49
₹257.45
excl. GST
₹303.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDP1340KC
₹257.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 130kHz~300kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Hiccup current limiting;Cable compensation;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7V~30V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.6V~20V
- Output Current
- 4A
- Quiescent Current
- 1.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.122 g
Overview
NDP1340KC is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a constant frequency, average current mode control architecture. Capable of delivering up to 4A continuous load with excellent line and load regulation. The device operates from an input voltage range of 7V to 32V and provides an adjustable output voltage from 3.6V to 25V.
Applications
- Car Charger
- Rechargeable Portable Devices
- Networking Systems
- Distributed Power Systems
Key features
- Wide VIN Range: 7V to 30V
- 4A Continuous Output Current
- Up to 94% Efficiency
- CC/CV Mode Control
- 100% Max Duty Cycle
- Built in Adjustable Cable Drop Compensation
- Cable drop Compensation up to 2.0V
- Adjustable Output Voltages
- +/ -1.5% Output Voltage Accuracy
- +/ - 5% Current Limit Accuracy
- Integrated 38mΩ High Side Switch
- Integrated 18mΩ Low Side Switch
- Programable Frequency(130KHz~300KHz)
- Burst Mode Operation at Light Load
- Internal loop Compensation
- Internal Soft Start
- Available in SOP8 Package
