NDP

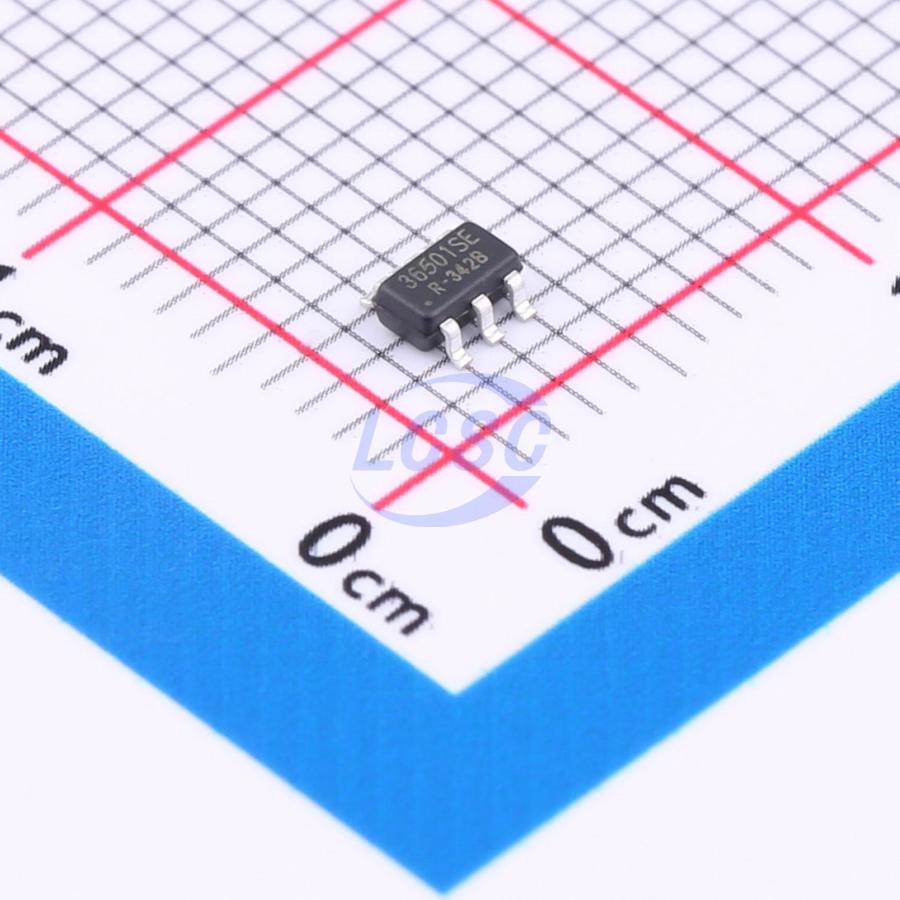

NDP36501SE-R

100kHz~600kHz Buck 1 DC-DC 10A 6V~60V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

60V High Efficiency Step-Down LED Driver

Manufacturer: NDP
Manufacturer part #: NDP36501SE-R
Store part #: C20415509
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,130 in stock

#C20415509

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.12	₹75.60
50+	₹13.16	₹658.00
150+	₹12.32	₹1,848.00
500+	₹11.26	₹5,630.00
3,000+	₹10.80	₹32,400.00
6,000+	₹10.50	₹63,000.00

Quantity (min 5, multiples of 5)

5 × ₹15.12

₹75.60

excl. GST

₹89.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NDP36501SE-R

₹75.60 for 5 + GST

Specifications

Features: Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 100kHz~600kHz
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+150℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 10A
Voltage - Input(DC): 6V~60V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

The NDP36501SE is a high- efficiency stepdown LED driver controller with a wide input voltage range of 6V to 60V. It is designed to operate in continuous current mode. The NDP36501SE employs a hysteretic control architecture that accurately regulates LED current with the feedback coming from an external high- side current- sense resistor. This control scheme optimizes circuit stabilization and fast response time without loop compensation. Its low 200mV average feedback voltage reduces power loss and improves the converter's efficiency. The NDP36501SE implements PWM and analog dimming together through the EN/DIM pin. NDP36501SE also includes thermal overload protection in case of output.
