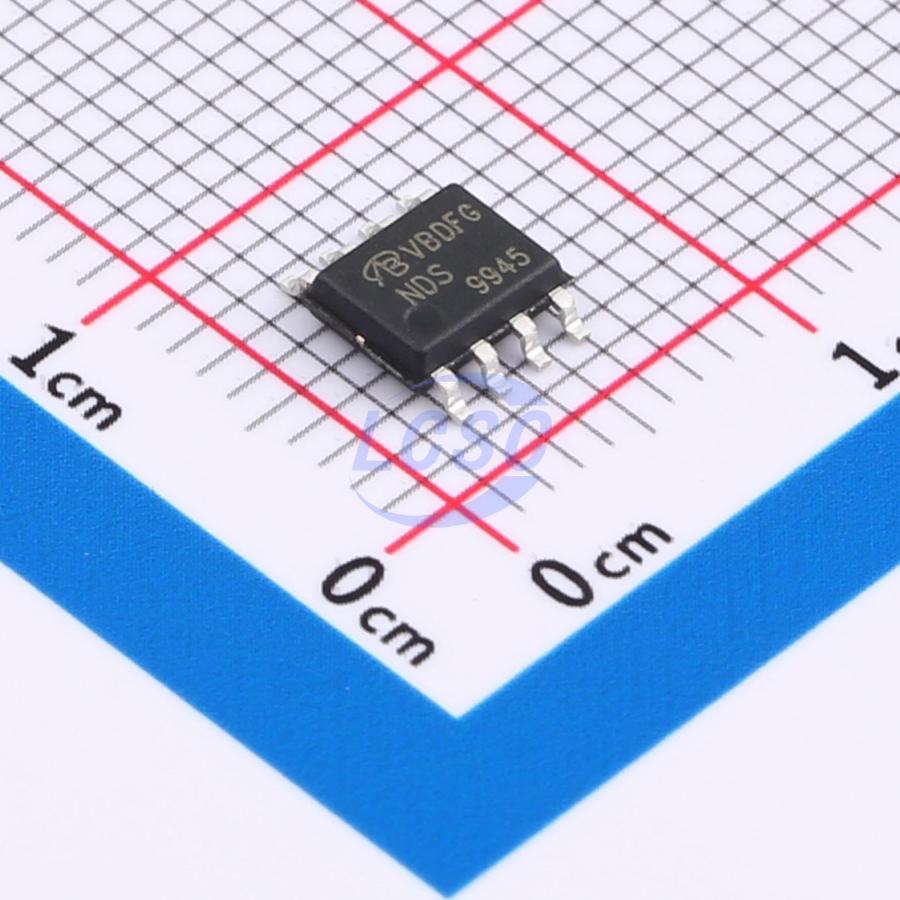

NDS9945-NL-VB
N-Channel Array 60V 7A 4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 60V 7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NDS9945-NL-VB
- Store part #
- C710032
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C710032
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.98 | ₹44.98 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹43.25 | ₹1,297.50 |
| 100+ | ₹42.38 | ₹4,238.00 |
1 × ₹44.98
₹44.98
excl. GST
₹53.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDS9945-NL-VB
₹44.98 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 750pF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 62pF
- RDS(on)
- 28mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
