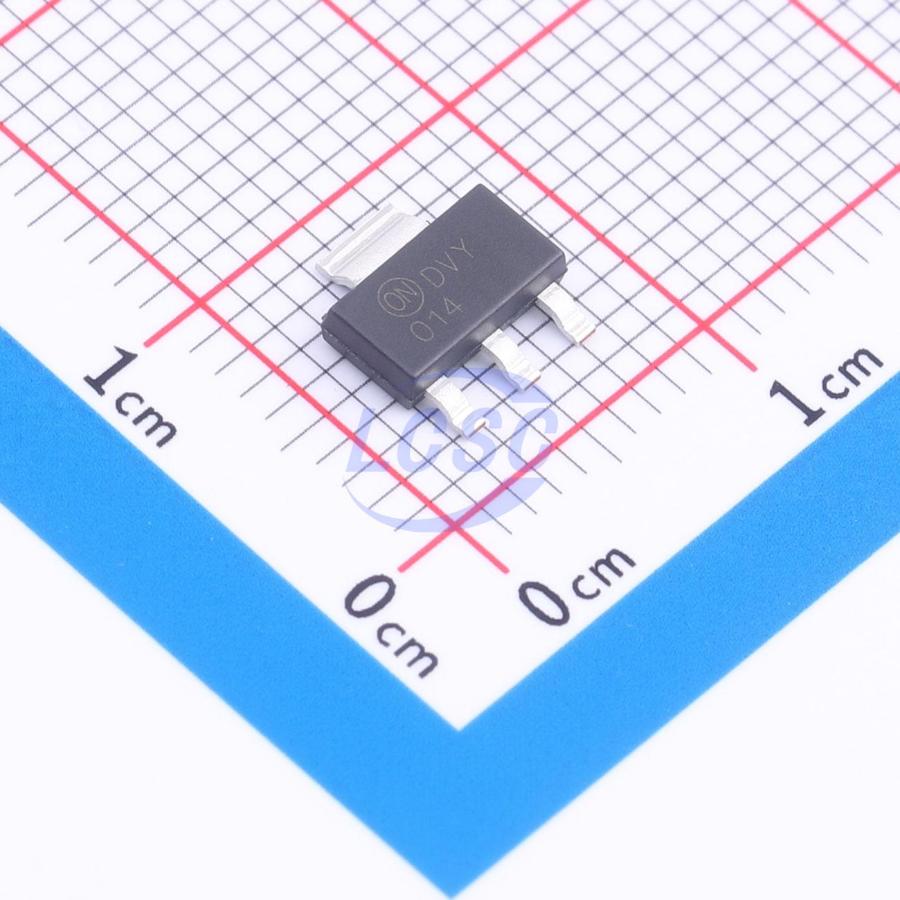

NDT014
3W 60V 2.7A 180mΩ@10V 1 N-channel N-Channel SOT-223-4 Single FETs, MOSFETs RoHS
SOT-223-4ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NDT014
- Store part #
- C895067
- Package / case
- SOT-223-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C895067
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.06 | ₹97.06 |
| 10+ | ₹94.87 | ₹948.70 |
| 30+ | ₹93.35 | ₹2,800.50 |
| 100+ | ₹91.83 | ₹9,183.00 |
1 × ₹97.06
₹97.06
excl. GST
₹114.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDT014
₹97.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 60pF
- Ciss-Input Capacitance
- 155pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 2.7A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 180mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
Power SOT N-channel enhancement-mode power MOSFETs are manufactured using a proprietary high cell density DMOS process. This ultra-high density process is specifically designed to minimize on-resistance and deliver superior switching performance. These devices are particularly suited for low-voltage applications such as DC motor control and DC/DC conversion, where fast switching, low in-line power dissipation, and ruggedness against transients are required.
Applications
- Switch-mode power supplies
- Active power factor correction (PFC)
- Electronic lamp ballasts
Key features
- 2.7A, 60V, R DS(ON) = 0.2Ω at VGS = 10V
- High-density cell design for ultra-low RDS(ON)
- High power and current handling capability in widely used SMT packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFL014TRPBF-BE3#C6969404VISHAY · SOT-223 | VISHAY | SOT-223 | 19 | ₹237.52 · 19 in stock | View |
 | FDT3612#C127977onsemi · SOT-223-3 | onsemi | SOT-223-3 | 56 | ₹80.09 · 56 in stock | View |
 | NDT014L#C274610onsemi · SOT-223 | onsemi | SOT-223 | 280 | ₹84.92 · 280 in stock | View |
 | FDT86256-VB#C20755501VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 17 | ₹104.20 · 17 in stock | View |
 | NTF3055-100T1G#C146718onsemi · SOT-223 | onsemi | SOT-223 | 713 | ₹80.11 · 713 in stock | View |
