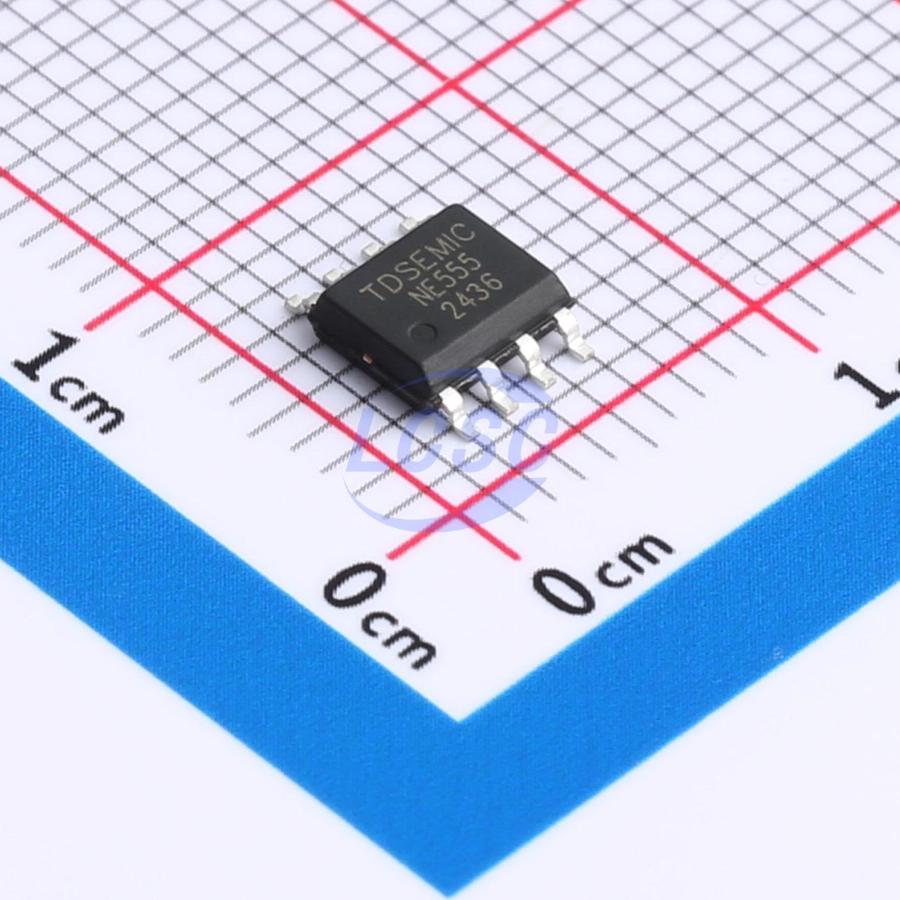

NE555-TD
4.5V~15V SOP-8 Application Specific Clock/Timing RoHS
SOP-8ROHS CompliantActive
555 timer
- Manufacturer
- TDSEMIC
- Manufacturer part #
- NE555-TD
- Store part #
- C42422057
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C42422057
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.53 | ₹55.30 |
| 100+ | ₹4.39 | ₹439.00 |
| 300+ | ₹3.81 | ₹1,143.00 |
| 2,500+ | ₹3.39 | ₹8,475.00 |
| 5,000+ | ₹3.04 | ₹15,200.00 |
| 10,000+ | ₹2.87 | ₹28,700.00 |
10 × ₹5.53
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE555-TD
₹55.30 for 10 + GST
Specifications
- Voltage - Supply
- 4.5V~15V
- Features
- Duty cycle stabilization;Adjustable duty cycle oscillation;Reset function
- Output Current
- 200mA
- Current - Supply
- 15mA
- Operating Temperature
- -40℃~+80℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.184 g
Overview
NE555/SA555 is a bipolar IC capable of generating high-precision timing pulses. Its internal circuit consists of four functional blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With only a few external resistors and capacitors, the device can be configured into various circuits such as monostable timers, PWM circuits, and audio oscillators. It is widely used in toys, traffic signals, and automation control applications.
Applications
- Audio pulse generator
- Frequency divider
- Device timing
- Pulse width modulation
- Industrial control
Key features
- High timing accuracy
- Strong output drive capability
- Excellent temperature stability
- Maximum operating frequency exceeding 500KHz
- TTL logic level compatible
- Available in SOP-8, DIP-8, MSOP-8 packages
- Timing range from microseconds to hours
