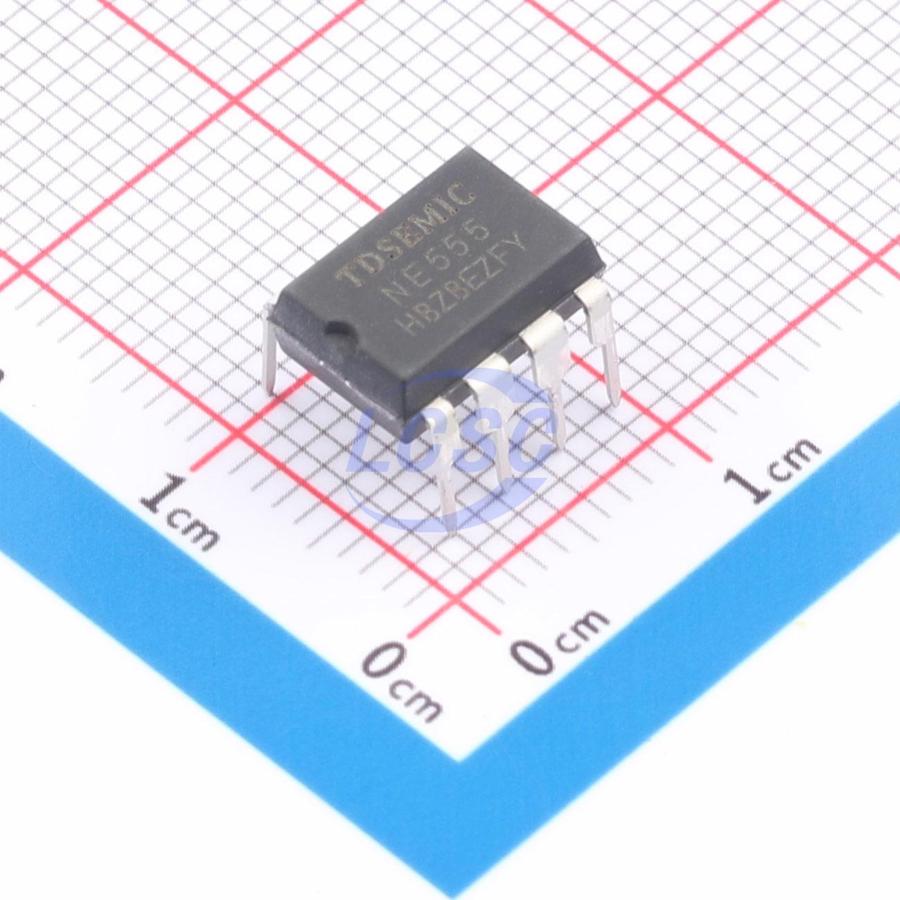

NE555N-TD
4.5V~15V DIP-8 Application Specific Clock/Timing RoHS
555 timer
- Manufacturer
- TDSEMIC
- Manufacturer part #
- NE555N-TD
- Store part #
- C42422056
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C42422056
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.88 | ₹64.40 |
| 50+ | ₹10.19 | ₹509.50 |
| 150+ | ₹8.83 | ₹1,324.50 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 2,500+ | ₹7.02 | ₹17,550.00 |
| 5,000+ | ₹6.61 | ₹33,050.00 |
5 × ₹12.88
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
NE555N-TD
₹64.40 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~15V
- Features
- Reset function;Adjustable duty cycle oscillation
- Output Current
- 200mA
- Current - Supply
- 15mA
- Operating Temperature
- -40℃~+80℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.75 g
Overview
NE555/SA555 is a bipolar IC capable of generating high-precision timing pulses. Its internal circuitry consists of four sections: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With only a few external resistors and capacitors, the device can be configured for timing trigger circuits, pulse width modulation circuits, audio oscillators, and more. It is widely used in toys, traffic signals, automation control, and other applications.
Applications
- Audio pulse generator
- Frequency divider
- Device timing
- Traffic light control
- Access control
- PWM
- Pulse phase modulation
- Industrial control
Key features
- Excellent timing accuracy
- High output drive capability
- Good temperature stability
- Maximum operating frequency up to 500KHz and above
- TTL-compatible
- Available in SOP-8, DIP-8, MSOP-8 packages
- Timing range from microseconds to hours
- Precise control via external resistors and capacitors
