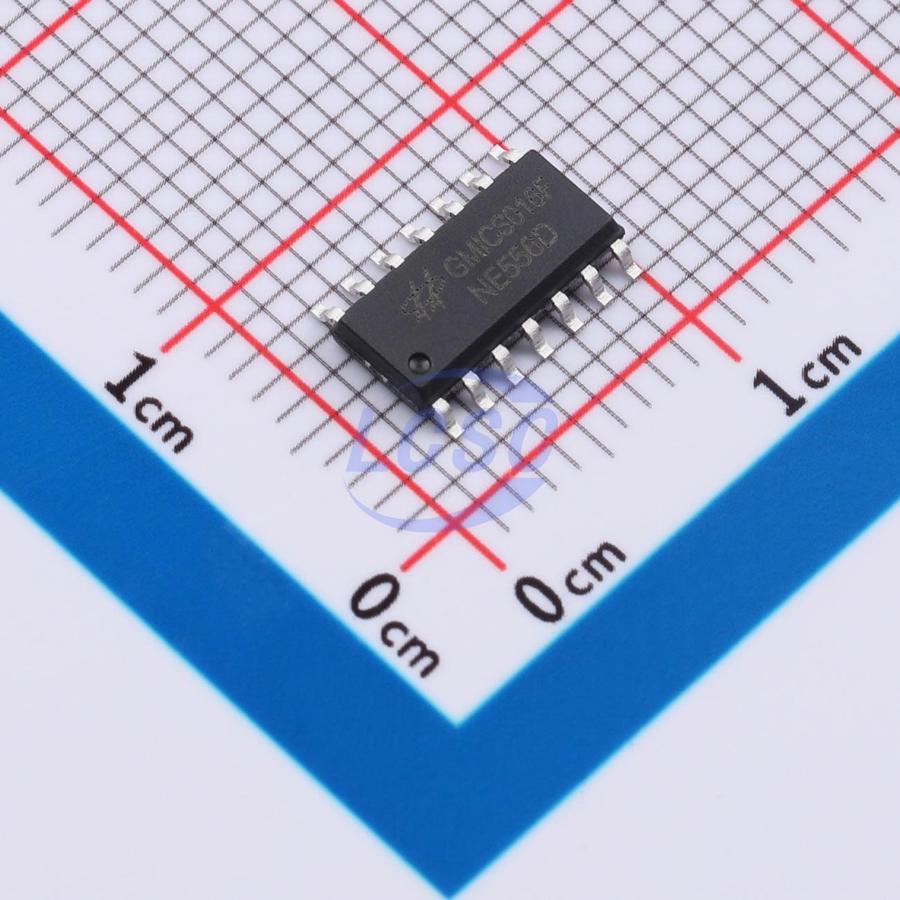

NE556DS
4.5V~18V SOP-14 Application Specific Clock/Timing
- Manufacturer
- GREENMICRO
- Manufacturer part #
- NE556DS
- Store part #
- C51927332
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C51927332
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.85 | ₹54.25 |
| 50+ | ₹8.61 | ₹430.50 |
| 150+ | ₹7.49 | ₹1,123.50 |
| 500+ | ₹6.65 | ₹3,325.00 |
| 2,500+ | ₹5.98 | ₹14,950.00 |
| 5,000+ | ₹5.64 | ₹28,200.00 |
5 × ₹10.85
₹54.25
excl. GST
₹64.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE556DS
₹54.25 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~18V
- Features
- Adjustable duty cycle oscillation;Reset function
- Output Current
- 200mA
- Timer Number
- 2
- Current - Supply
- 4mA
- Operating Temperature
- 0℃~+70℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.351 g
Overview
The NE556 dual independent timer is a controller capable of generating highly accurate time delays or oscillations. In time delay mode, the timing is precisely controlled by external resistors and capacitors. When used as an oscillator, both the free-running frequency and duty cycle can be accurately set via two external resistors and one capacitor. The circuit can be triggered or reset by falling-edge waveforms, and its output stage is capable of sourcing or sinking up to 200mA of current.
Key features
- Maximum operating frequency exceeding 500kHz
- Timing range from microseconds to hours
- Supports astable and monostable operating modes
- Output current sourcing or sinking up to 200mA
- Adjustable duty cycle
- TTL-compatible
- Temperature stability of 0.005%/°C
