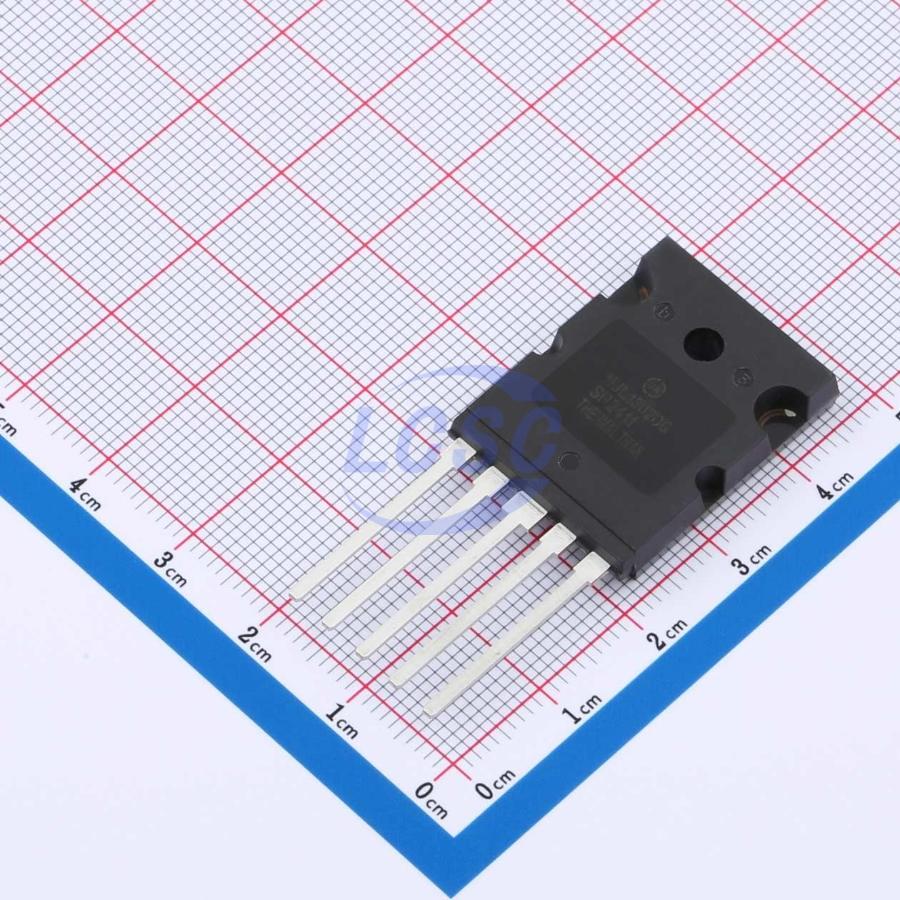

NJL1302DG
Bipolar (BJT) Transistor PNP 260V 15A 30MHz 200W Through Hole TO-264-5
TO-264-5ROHS3 CompliantActive
TRANS PNP 260V 15A TO-264-5
- Manufacturer
- onsemi
- Manufacturer part #
- NJL1302DG
- Store part #
- C464247
- Package / case
- TO-264-5
- Category
- Single Bipolar Transistors
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C464247
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹775.11 | ₹775.11 |
| 10+ | ₹666.67 | ₹6,666.70 |
| 30+ | ₹600.39 | ₹18,011.70 |
| 100+ | ₹544.98 | ₹54,498.00 |
1 × ₹775.11
₹775.11
excl. GST
₹914.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
NJL1302DG
₹775.11 for 1 + GST
Specifications
- Current - Collector Cutoff
- 50uA
- Operating Temperature
- -65℃~+150℃
- Transition frequency(fT)
- 30MHz
- Collector - Emitter Voltage VCEO
- 260V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 75
- Current - Collector(Ic)
- 15A
- Pd - Power Dissipation
- 200W
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 13.5 g
Overview
The ThermalTrak family of devices has been designed to eliminate thermal equilibrium lag time and bias trimming in audio amplifier applications. They can also be used in other applications as transistor die protection devices.
Applications
- High−End Consumer Audio Products
- Home Amplifiers
- Home Receivers
- Professional Audio Amplifiers
- Theater and Stadium Sound Systems
- Public Address Systems (PAs)
Key features
- Thermally Matched Bias Diode
- Instant Thermal Bias Tracking
- Absolute Thermal Integrity
- High Safe Operating Area
- Pb−Free Packages are Available*
