VBsemi ElecDatasheet (PDF)

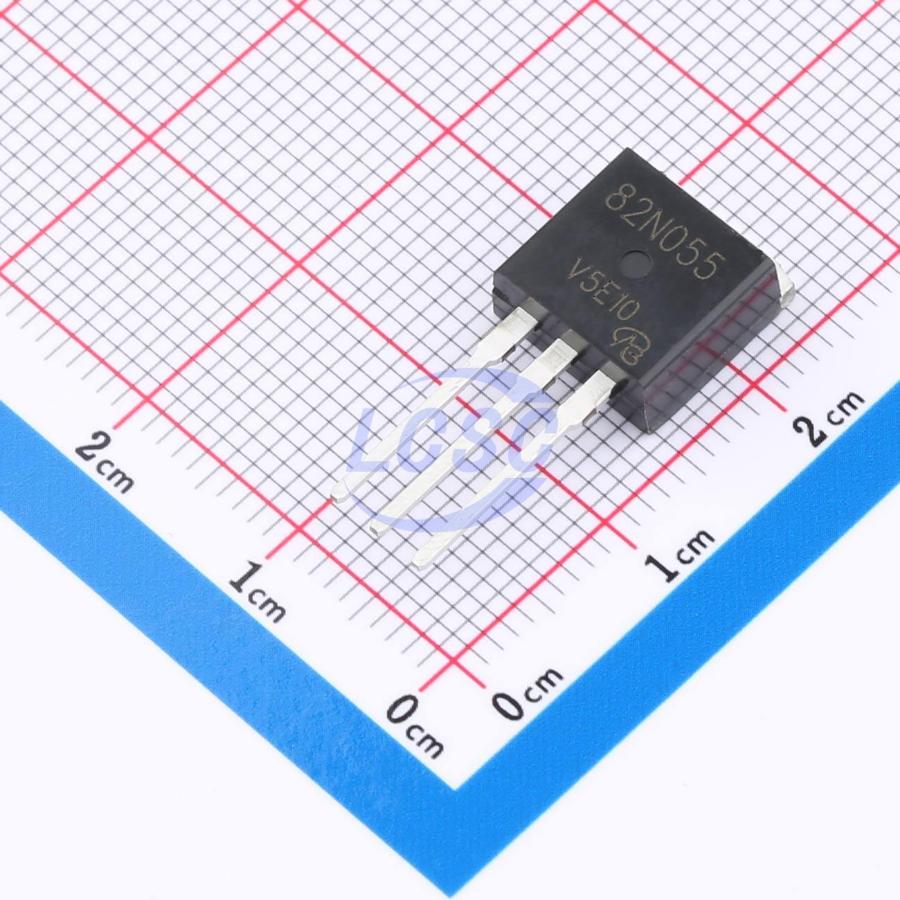

NP82N055NUG-VB
N-Channel 60V 120A 230W Through Hole TO-262
TO-262RoHSActive
MOSFET N-CH 60V 120A TO-262
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NP82N055NUG-VB
- Store part #
- C47994038
- Package / case
- TO-262
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47994038
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.07 | ₹164.07 |
| 10+ | ₹138.86 | ₹1,388.60 |
| 50+ | ₹124.96 | ₹6,248.00 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹84.54 | ₹42,270.00 |
| 1,000+ | ₹81.27 | ₹81,270.00 |
1 × ₹164.07
₹164.07
excl. GST
₹193.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
NP82N055NUG-VB
₹164.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 120A
- Output Capacitance(Coss)
- 885pF
- Ciss-Input Capacitance
- 6.495nF
- Pd - Power Dissipation
- 230W
- Reverse Transfer Capacitance (Crss)
- 420pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 145nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.6 g
Overview
Applications
- DC/DC Converters - DC/AC Inverters - Motor Drivers
Key features
- Trench power MOSFET
- Low thermal resistance package
- AEC-Q101 qualified
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9E06-55A-VB#C22389533VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 10 | ₹141.59 · 10 in stock | View |
 | BUK9E08-55B,127-VB#C52191106VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
 | AUIRF1010ZL-VB#C52989033VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
 | STB80NF55L-08-1-VB#C52989034VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
 | AUIRL3705ZL-VB#C52989035VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
