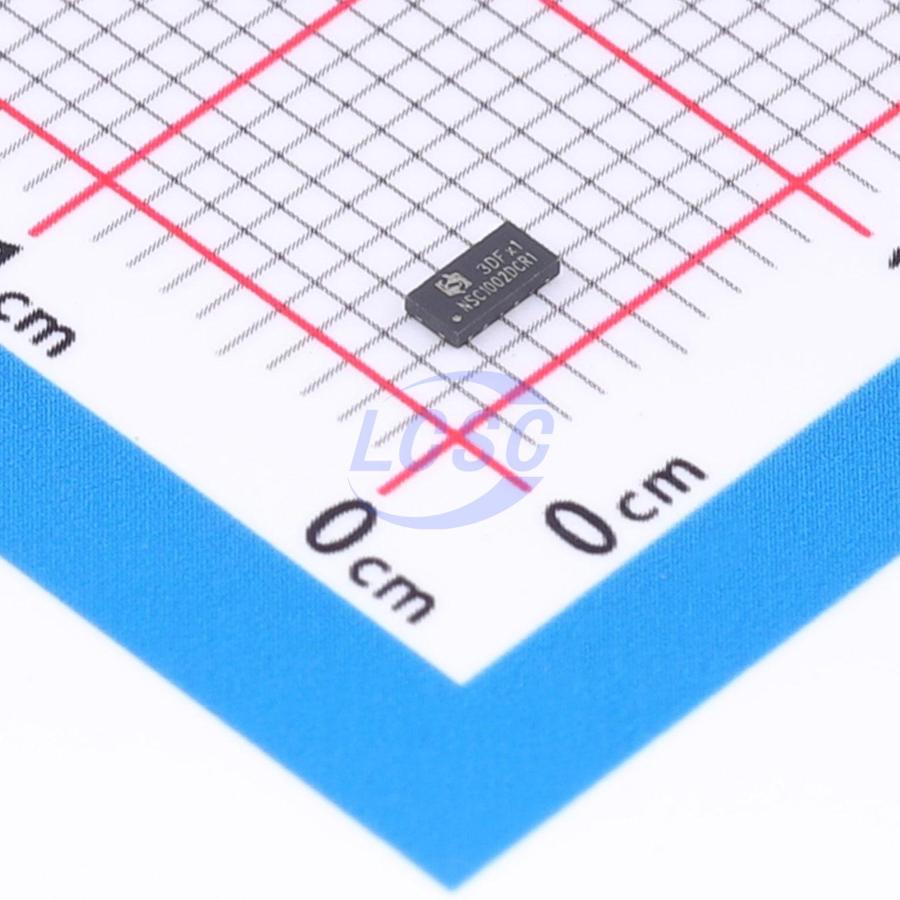

NCEDatasheet (PDF)
NSC1002
200kHz 4.5V~6V DFN-12(1.5x3) Voltage Regulators - DC DC Switching Regulators
DFN-12(1.5x3)RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSC1002
- Store part #
- C53436480
- Package / case
- DFN-12(1.5x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,386 in stock
#C53436480
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 2+ | ₹18.15 | ₹36.30 |
| 20+ | ₹17.79 | ₹355.80 |
| 60+ | ₹17.57 | ₹1,054.20 |
| 200+ | ₹17.33 | ₹3,466.00 |
2 × ₹18.15
₹36.30
excl. GST
₹42.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSC1002
₹36.30 for 2 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 200kHz
- Function
- Inverted;boost converter
- Features
- Low ripple / low noise architecture
- Operating Voltage
- 2.3V~3.8V
- Output Voltage
- 4.5V~6V
- Energy Efficiency
- 80%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 2 (multiples of 2)
- Unit weight
- 0.05 g
Overview
NSC1002 is a low-noise charge pump DC/DC controller capable of generating both positive and negative voltages simultaneously. It features an input voltage range of 2.3~3.8V, with output voltage ranges of 4.5~6V and -4.5~-6V. Its simple peripheral circuitry makes it ideal for compact battery-powered applications. The NSC1002 output voltage is adjustable based on operating mode, supporting three modes — X1.5, X2, and X3 — where the output voltage is a multiple of the supply voltage. The NSC1002 is housed in a space-saving DFN-12 package.
Applications
- Mobile devices
- MP3 players
- Smartphones
- LCD power supply
- Optical components
- RF amplifiers
- Portable sensors
Key features
- Wide input supply voltage range: 2.3V~3.8V
- Adjustable operating frequency
- Adjustable operating mode
- Positive (VSP) output voltage:
- X1.5 mode: 5.7V
- X2 mode: 5.6V
- X3 mode: 6.6V
- Negative (VSN) output voltage:
- X1.5 mode: -5.7V
- X2 mode: -5.6V
- X3 mode: -6.6V
- No inductor required, minimal external components
- VCI port operating current:
- X1.5 mode: 110mA
- X2 mode: 110mA
- X3 mode: 110mA
- Operating temperature range: -40~85°C
- DFN-12 package: 3×1.5×0.5mm
