onsemi

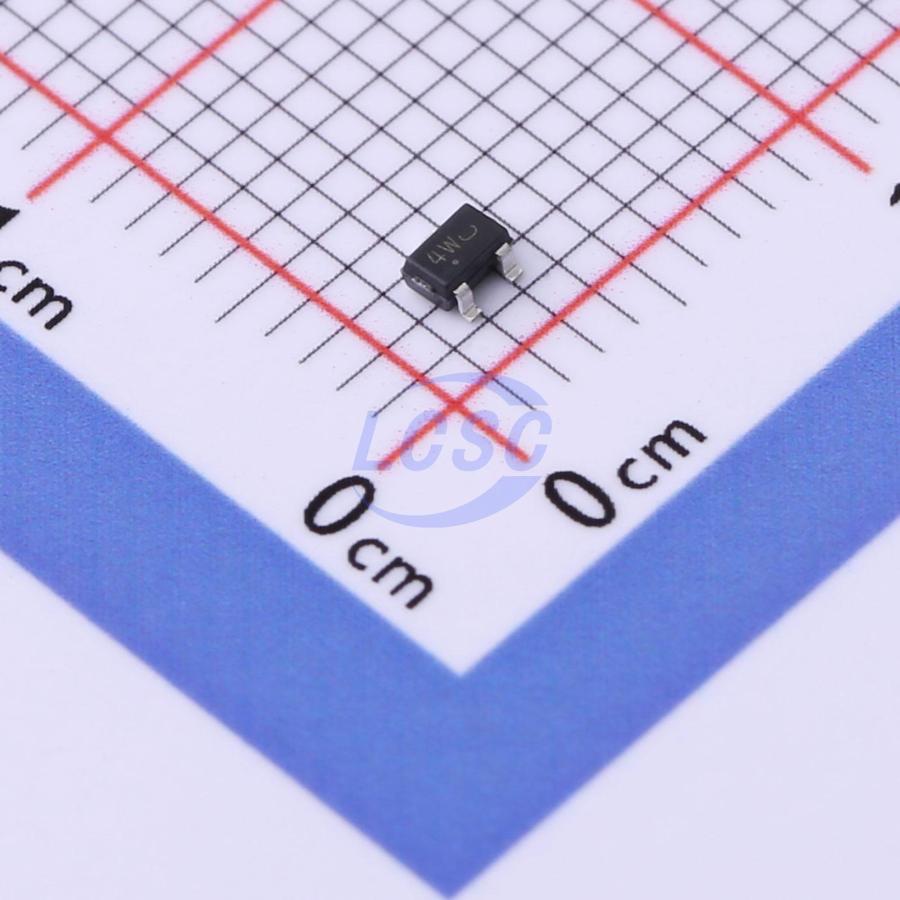

NSVMMBT5401WT1G

Bipolar (BJT) Transistor PNP 150V 500mA 100MHz 400mW Surface Mount SC-70-3

SC-70-3ROHS3 CompliantActive

TRANS PNP 150V 500mA SC-70-3

Manufacturer: onsemi
Manufacturer part #: NSVMMBT5401WT1G
Store part #: C893941
Package / case: SC-70-3
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C893941

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹56.96	₹284.80
50+	₹46.91	₹2,345.50
150+	₹42.61	₹6,391.50
500+	₹37.24	₹18,620.00
3,000+	₹34.85	₹1,04,550.00
6,000+	₹33.42	₹2,00,520.00

Quantity (min 5, multiples of 5)

5 × ₹56.96

₹284.80

excl. GST

₹336.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NSVMMBT5401WT1G

₹284.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 50nA
Transition frequency(fT): 100MHz
Collector - Emitter Voltage VCEO: 150V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 50
Pd - Power Dissipation: 400mW
Current - Collector(Ic): 500mA
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 500mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

Key features

NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	MMST5401#C968403YANGJIE · SOT-323	YANGJIE	SOT-323	On request	₹3.80 · 0 in stock	View
