NTBL045N065SC1
650V 73A 348W 50mΩ 1 N-channel N-Channel H-PSOF8L(9.9x11.68) Single FETs, MOSFETs RoHS
H-PSOF8L(9.9x11.68)ROHS3 CompliantActive

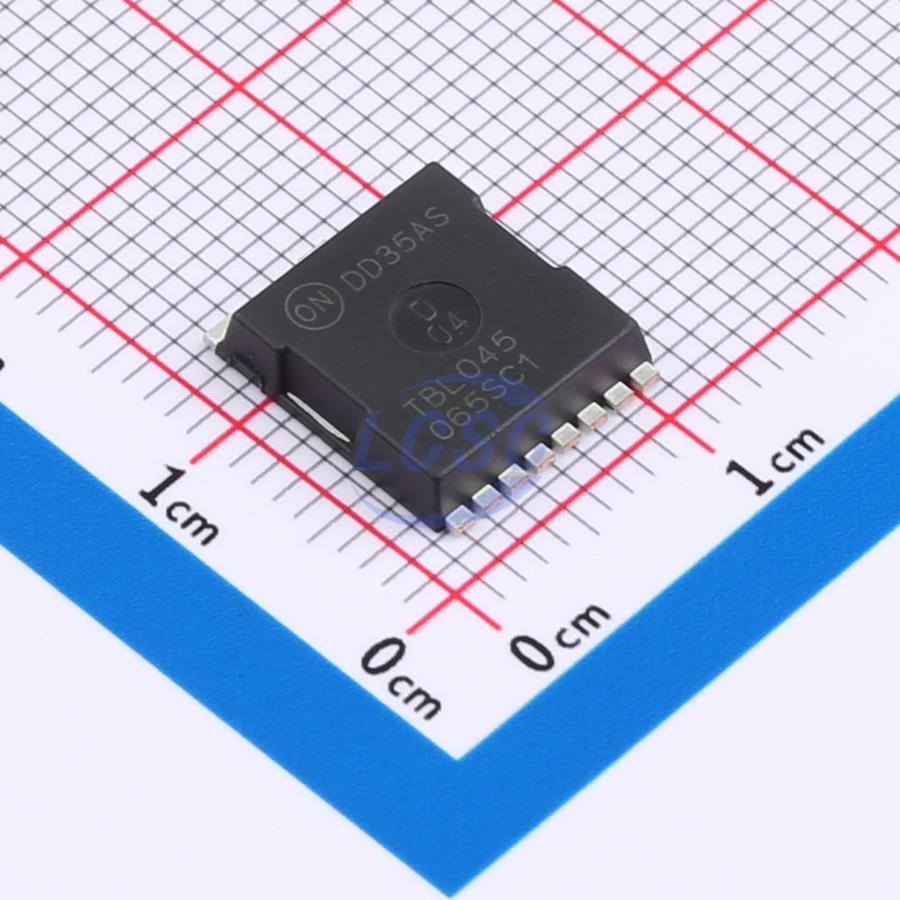

Silicon Carbide (SiC) MOSFET - 650 V
- Manufacturer
- onsemi
- Manufacturer part #
- NTBL045N065SC1
- Store part #
- C5208253
- Package / case
- H-PSOF8L(9.9x11.68)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5208253
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,739.23 | ₹1,739.23 |
| 10+ | ₹1,355.72 | ₹13,557.20 |
| 30+ | ₹1,220.52 | ₹36,615.60 |
| 100+ | ₹1,107.42 | ₹1,10,742.00 |
1 × ₹1,739.23
₹1,739.23
excl. GST
₹2,052.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NTBL045N065SC1
₹1,739.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 73A
- Output Capacitance(Coss)
- 162pF
- Ciss-Input Capacitance
- 1.87nF
- Pd - Power Dissipation
- 348W
- Reverse Transfer Capacitance (Crss)
- 14pF
- RDS(on)
- 50mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC
- Gate Threshold Voltage (Vgs(th))
- 4.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.89 g
Overview
Applications
- SMPS (Switching Mode Power Supplies)
- Solar Inverters
- UPS (Uninterruptable Power Supplies)
- Energy Storage
Key features
- Typ. RDS(on) = 33mΩ @ VGS = 18V
- Typ. RDS(on) = 45mΩ @ VGS = 15V
- Ultra Low Gate Charge (QG(tot) = 105 nC)
- Low Effective Output Capacitance (Coss = 162pF)
- 100% Avalanche Tested
- TJ = 175°C
- RoHS Compliant
