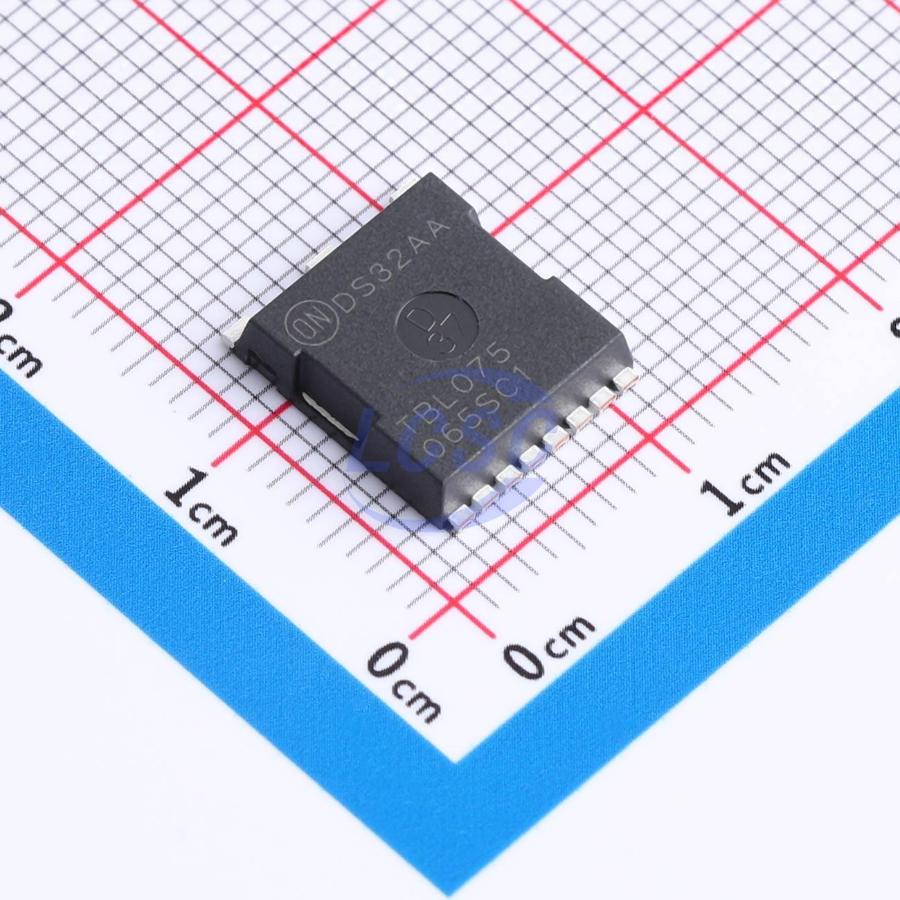

NTBL075N065SC1
650V 37A 139W 85mΩ 1 N-channel N-Channel H-PSOF8L Single FETs, MOSFETs RoHS
H-PSOF8LROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTBL075N065SC1
- Store part #
- C33244893
- Package / case
- H-PSOF8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C33244893
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,225.81 | ₹1,225.81 |
| 10+ | ₹1,199.02 | ₹11,990.20 |
| 30+ | ₹1,181.15 | ₹35,434.50 |
| 100+ | ₹1,163.49 | ₹1,16,349.00 |
1 × ₹1,225.81
₹1,225.81
excl. GST
₹1,446.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NTBL075N065SC1
₹1,225.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 37A
- Output Capacitance(Coss)
- 109pF
- Ciss-Input Capacitance
- 191pF
- Pd - Power Dissipation
- 139W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 85mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 59nC
- Gate Threshold Voltage (Vgs(th))
- 4.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.884 g
Overview
Applications
- Switched-mode power supplies
- Solar inverters
- Uninterruptible power supplies
- Energy storage systems
Key features
- Typical on-resistance RDS(on) = 56mΩ @ VGS = 18V
- Typical on-resistance RDS(on) = 75mΩ @ VGS = 15V
- Ultra-low gate charge (QG(tot) = 59nC)
- Low effective output capacitance (Coss = 109pF)
- 100% avalanche tested
- Maximum junction temperature TJ = 175°C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTBL060N065SC1#C35272445onsemi · H-PSOF8L | onsemi | H-PSOF8L | On request | ₹1,844.00 · 0 in stock | View |
