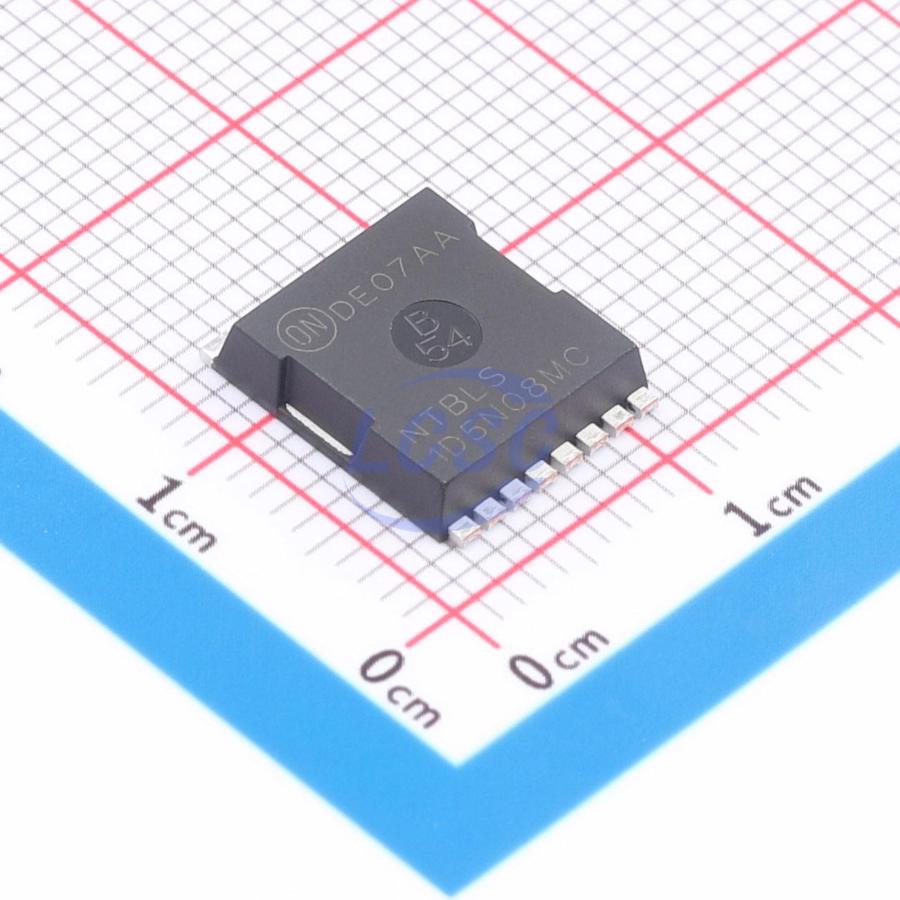

NTBLS1D5N08MC
250W 80V 298A 1.3mΩ@10V 1 N-channel N-Channel MO-299A Single FETs, MOSFETs RoHS
MO-299AROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTBLS1D5N08MC
- Store part #
- C903211
- Package / case
- MO-299A
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C903211
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,746.23 | ₹1,746.23 |
| 10+ | ₹1,666.23 | ₹16,662.30 |
| 30+ | ₹1,527.24 | ₹45,817.20 |
| 100+ | ₹1,406.27 | ₹1,40,627.00 |
1 × ₹1,746.23
₹1,746.23
excl. GST
₹2,060.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NTBLS1D5N08MC
₹1,746.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.025nF
- Ciss-Input Capacitance
- 8.17nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 298A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 1.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 111nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.56 g
Overview
Applications
- Power tools, battery-powered vacuum cleaners
- Drones, material handling
- Battery management systems/energy storage, home automation
Key features
- Low R DS(on) to minimize conduction losses
- Low QG and capacitance to minimize driver losses
- Reduced switching noise/EMI
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
