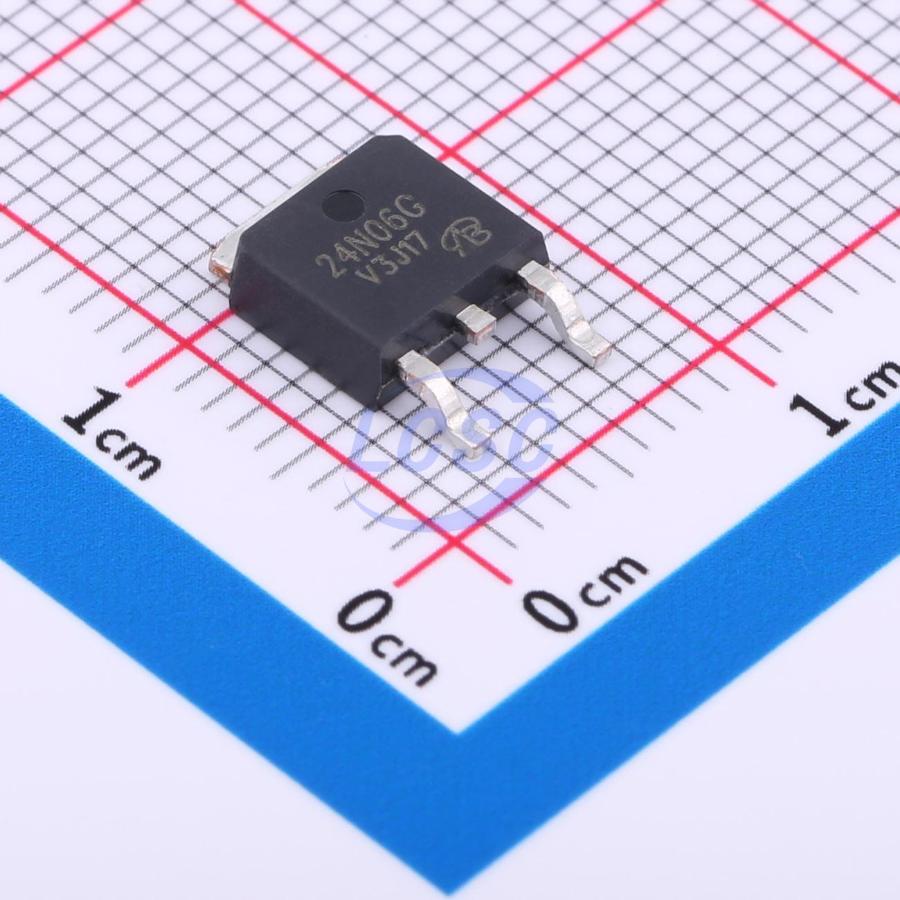

NTD24N06G-VB
N-Channel 60V 45A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD24N06G-VB
- Store part #
- C19188172
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19188172
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.07 | ₹69.07 |
| 10+ | ₹54.84 | ₹548.40 |
| 30+ | ₹48.88 | ₹1,466.40 |
| 100+ | ₹41.24 | ₹4,124.00 |
| 500+ | ₹37.84 | ₹18,920.00 |
| 1,000+ | ₹35.71 | ₹35,710.00 |
1 × ₹69.07
₹69.07
excl. GST
₹81.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD24N06G-VB
₹69.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V;30mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
Applications
- H-Bridge/DC-AC Inverter
- Brushless DC Motor
Key features
- Trench Power MOSFET
- 175°C junction temperature rating
- RoHS compliant
- Drain connected to heatsink
- N-Channel MOSFET
