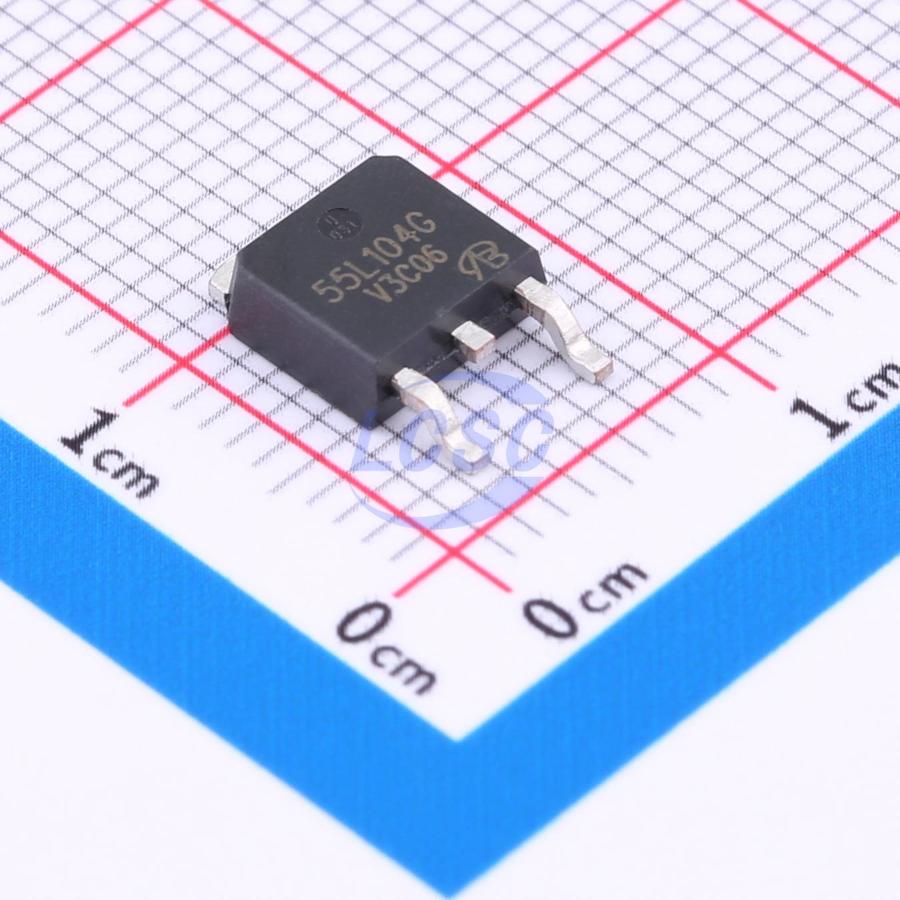

NTD3055L104T4G-VB
N-Channel 60V 18A 41.7W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 18A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD3055L104T4G-VB
- Store part #
- C7429083
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C7429083
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.25 | ₹55.25 |
| 10+ | ₹44.33 | ₹443.30 |
| 30+ | ₹39.70 | ₹1,191.00 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹28.15 | ₹14,075.00 |
| 1,000+ | ₹26.68 | ₹26,680.00 |
1 × ₹55.25
₹55.25
excl. GST
₹65.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD3055L104T4G-VB
₹55.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 85pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 73mΩ@10V;85mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Applications
- DC/DC Converters - DC/AC Inverters - Motor Drivers
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MTD3055VLG-VB#C18212549VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹52.31 · 2 in stock | View |
 | 55L104G TO252-VB#C18212550VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹59.01 · 40 in stock | View |
 | IPD14N06S2-80-VB#C18795046VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹54.65 · 2 in stock | View |
 | 5P06V-VB#C19190126VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹50.84 · 5 in stock | View |
 | NTD3055-150G-VB#C19190189VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹53.56 · 40 in stock | View |
