HXY MOSFETDatasheet (PDF)

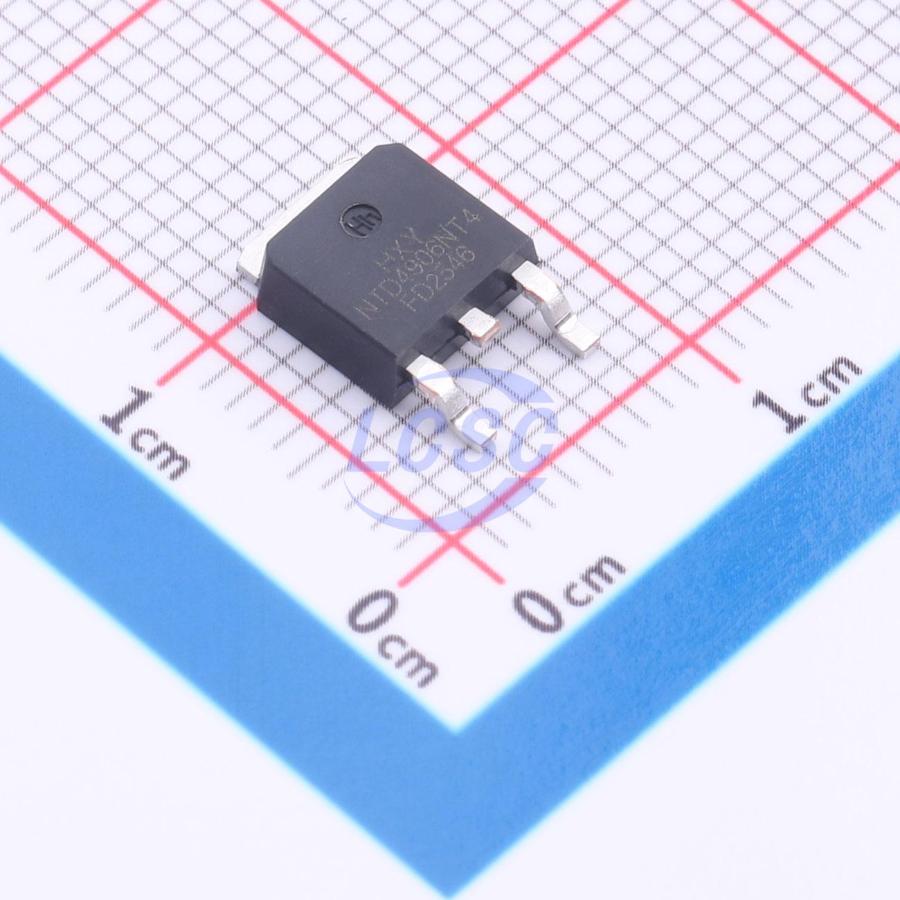

NTD4906NT4G-HXY
54W 30V 80A 5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD4906NT4G-HXY
- Store part #
- C53263308
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C53263308
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.90 | ₹169.50 |
| 50+ | ₹26.74 | ₹1,337.00 |
| 150+ | ₹23.67 | ₹3,550.50 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 2,500+ | ₹18.13 | ₹45,325.00 |
| 5,000+ | ₹17.11 | ₹85,550.00 |
5 × ₹33.90
₹169.50
excl. GST
₹200.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD4906NT4G-HXY
₹169.50 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 200pF
- Ciss-Input Capacitance
- 1.16nF
- Pd - Power Dissipation
- 54W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.1nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.38 g
