VBsemi ElecDatasheet (PDF)

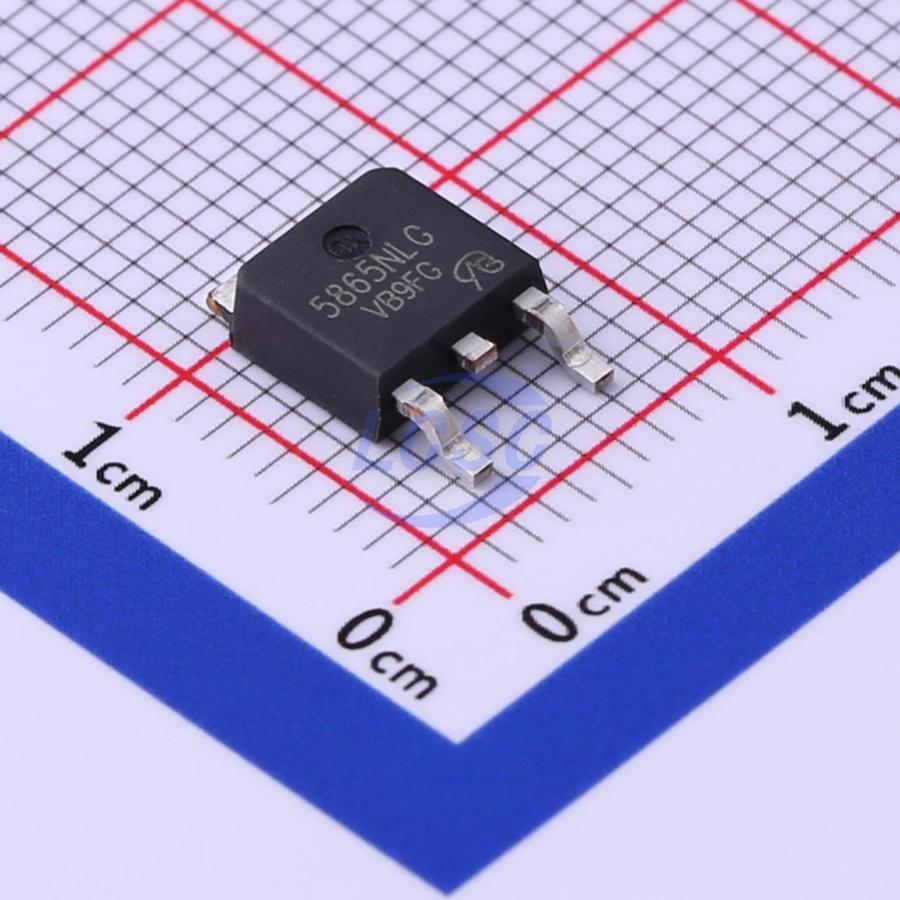

NTD5865NLT4G&-15-VB
N-Channel 60V 58A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD5865NLT4G&-15-VB
- Store part #
- C558212
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C558212
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.90 | ₹106.90 |
| 10+ | ₹90.35 | ₹903.50 |
| 30+ | ₹82.08 | ₹2,462.40 |
| 100+ | ₹73.81 | ₹7,381.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹106.90
₹106.90
excl. GST
₹126.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD5865NLT4G&-15-VB
₹106.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
- N-channel MOSFET
