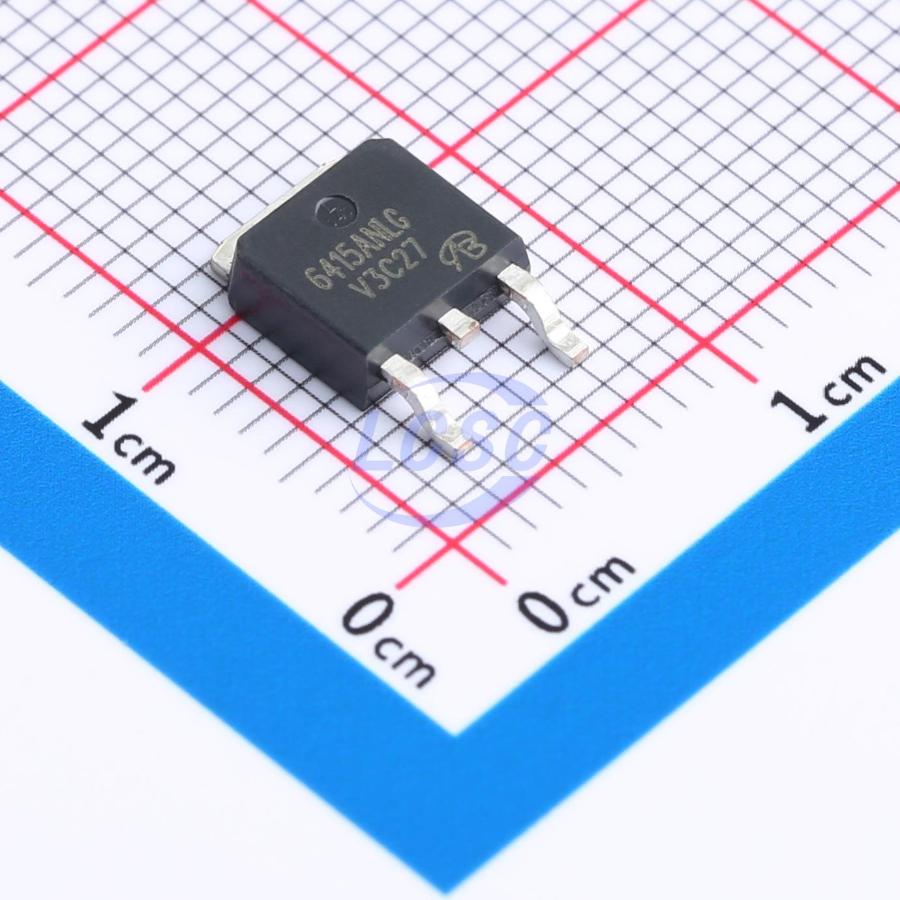

NTD6415ANLT4G-VB
N-Channel 100V 40A 107W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 40A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD6415ANLT4G-VB
- Store part #
- C19190205
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19190205
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.14 | ₹107.14 |
| 10+ | ₹87.17 | ₹871.70 |
| 30+ | ₹77.09 | ₹2,312.70 |
| 100+ | ₹67.22 | ₹6,722.00 |
| 500+ | ₹61.14 | ₹30,570.00 |
| 1,000+ | ₹58.19 | ₹58,190.00 |
1 × ₹107.14
₹107.14
excl. GST
₹126.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD6415ANLT4G-VB
₹107.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 30mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.414 g
Overview
Applications
- OR-ing Operation - Server - DC-DC Converter
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9240-100A-VB#C18212451VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹108.38 · 35 in stock | View |
 | BUK7275-100A-VB#C19188134VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹108.38 · 8 in stock | View |
 | 40N10 TO252-VB#C19626786VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹107.14 · 35 in stock | View |
 | STD15NF10T4-VB#C19632071VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹108.38 · 38 in stock | View |
 | RSD200N10TL-VB#C20754932VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹102.93 · 50 in stock | View |
