onsemiDatasheet (PDF)

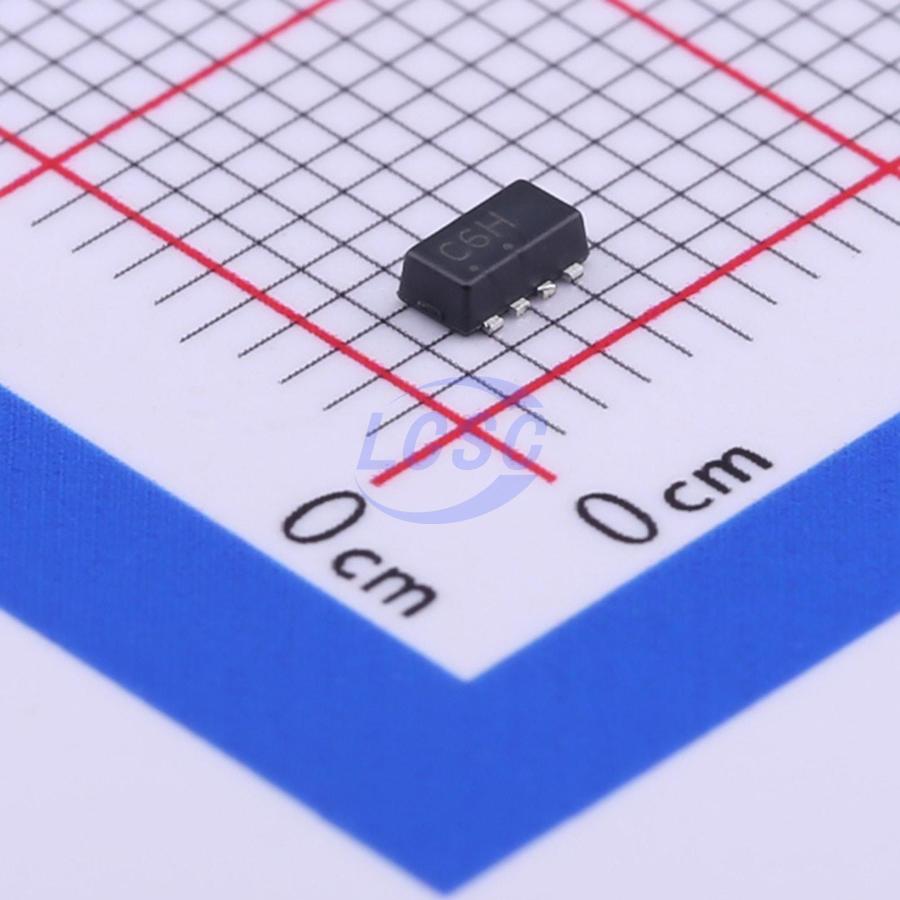

NTHS4101PT1G
P-Channel 20V 6.7A Surface Mount SMD-8P
SMD-8PROHS3 CompliantActive
MOSFET P-CH 20V 6.7A SMD-8P
- Manufacturer
- onsemi
- Manufacturer part #
- NTHS4101PT1G
- Store part #
- C424249
- Package / case
- SMD-8P
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88 in stock
#C424249
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.87 | ₹163.87 |
| 10+ | ₹136.23 | ₹1,362.30 |
| 30+ | ₹120.90 | ₹3,627.00 |
| 100+ | ₹103.63 | ₹10,363.00 |
| 500+ | ₹96.08 | ₹48,040.00 |
| 1,000+ | ₹92.62 | ₹92,620.00 |
1 × ₹163.87
₹163.87
excl. GST
₹193.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTHS4101PT1G
₹163.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.1nF
- Pd - Power Dissipation
- 1.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6.7A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 42mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 450mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
Applications
- Optimized for Battery and Load Management Applications in Portable Equipment such as MP3 Players, Cell Phones, Digital Cameras, Personal Digital Assistant and other Portable Applications
- Charge Control in Battery Chargers
- Buck and Boost Converters
Key features
- Offers an Ultra Low RDS(on) Solution in the ChipFET Package
- Miniature ChipFET Package 40% Smaller Footprint than TSOP−6 making it an Ideal Device for Applications where Board Space is at a Premium
- Low Profile (<1.1 mm) Allows it to Fit Easily into Extremely Thin Environments such as Portable Electronics
- Designed to Provide Low RDS(on) at Gate Voltage as Low as 1.8 V, the Operating Voltage used in many Logic ICs in Portable Electronics
- Simplifies Circuit Design since Additional Boost Circuits for Gate Voltages are not Required Operated at Standard Logic Level Gate Drive, Facilitating Future Migration to Lower Levels using the same Basic Topology
- Pb−Free Package is Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPCP8107,LF#C7125459TOSHIBA · SMD-8P | TOSHIBA | SMD-8P | On request | ₹120.00 · 0 in stock | View | |
| SI5441BDC-T1-GE3#C727824VISHAY · SMD-8P | VISHAY | SMD-8P | On request | ₹78.22 · 0 in stock | View | |
