onsemiDatasheet (PDF)

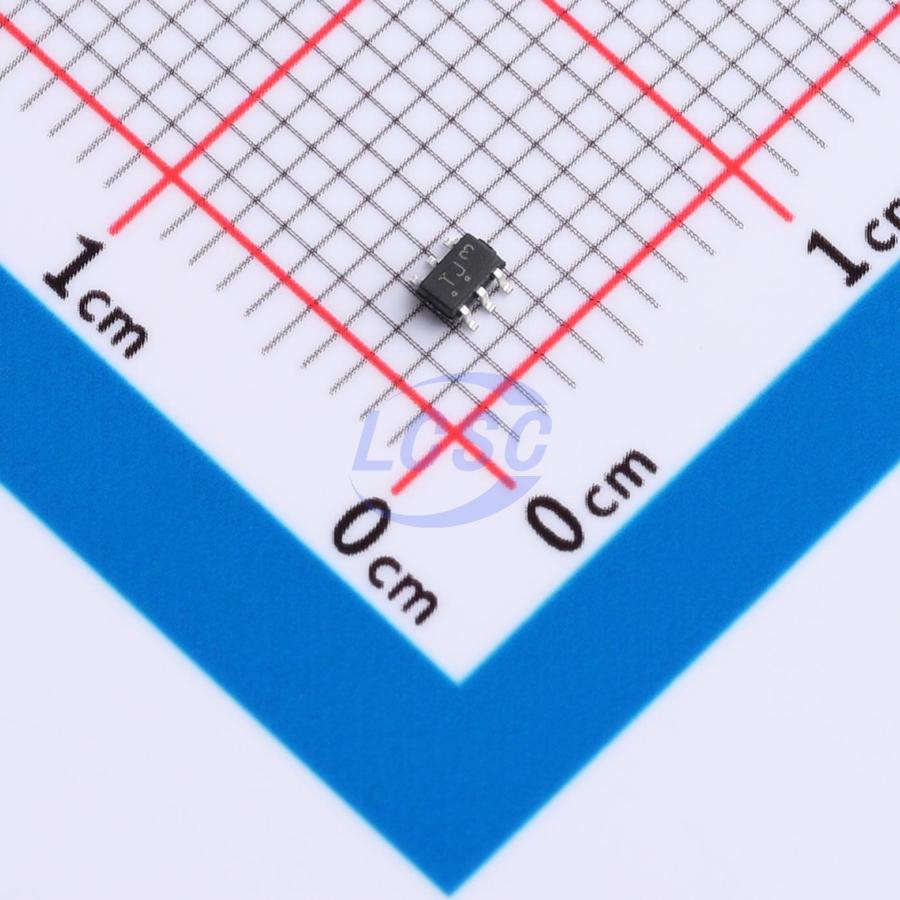

NTJS3151PT2G
625mW 12V 3.3A 60mΩ@4.5V 1 P-Channel P-Channel SC-88-6 Single FETs, MOSFETs RoHS
SC-88-6ROHS3 CompliantActive
P-Channel MOSFET, Current:3.3A, Voltage:12V
- Manufacturer
- onsemi
- Manufacturer part #
- NTJS3151PT2G
- Store part #
- C236242
- Package / case
- SC-88-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C236242
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.97 | ₹56.97 |
| 10+ | ₹56.32 | ₹563.20 |
| 30+ | ₹55.90 | ₹1,677.00 |
| 100+ | ₹55.46 | ₹5,546.00 |
1 × ₹56.97
₹56.97
excl. GST
₹67.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTJS3151PT2G
₹56.97 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 850pF
- Pd - Power Dissipation
- 625mW
- Drain to Source Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 3.3A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.6nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
NCE20P70G utilizes advanced trench technology and design to deliver excellent drain-source on-resistance with low gate charge. It is suitable for a wide range of applications.
Applications
- High-side load switch — mobile phones, computers, digital cameras, MP3 players, and PDAs
Key features
- Advanced trench technology for low R<sub>DS(ON)</sub>, extended battery life
- SC-88 small outline package (2x2 mm, equivalent to SC70-6)
- Gate diode for ESD protection
- NV prefix for automotive and other applications with unique sourcing and change control requirements; AEC-Q101 qualified with PPAP capability
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCH6342-TL-W#C480774onsemi · SC-88FL(MCPH-6) | onsemi | SC-88FL(MCPH-6) | 2 | ₹75.65 · 2 in stock | View |
 | RRL035P03TR#C6987798ROHM · TUMT6 | ROHM | TUMT6 | 620 | ₹21.51 · 620 in stock | View |
| MCH6341-TL-W#C891545onsemi · MCPH-6 | onsemi | MCPH-6 | 211 | ₹72.86 · 211 in stock | View | |
 | SI1443EDH-T1-GE3#C727305VISHAY · SC-70-6 | VISHAY | SC-70-6 | 663 | ₹63.36 · 663 in stock | View |
 | RAL035P01TCR#C509918ROHM · TUMT6 | ROHM | TUMT6 | 1,020 | ₹29.17 · 1,020 in stock | View |
