onsemiDatasheet (PDF)

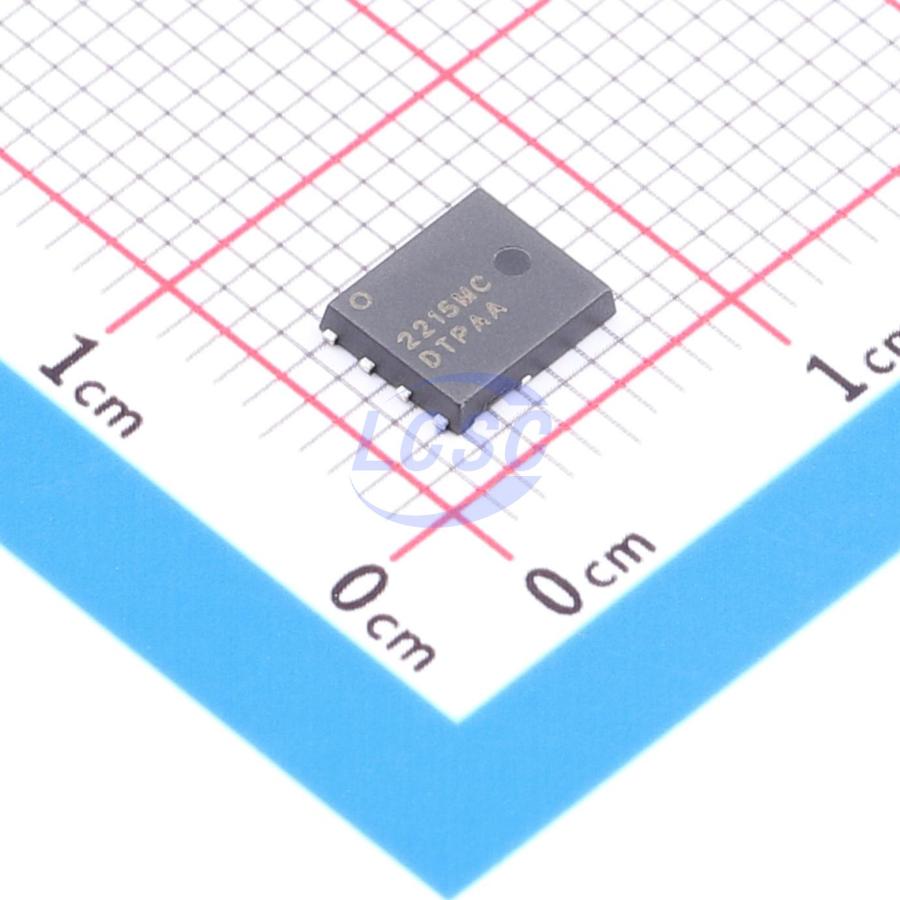

NTMFS022N15MC
N-Channel 150V 41.9A 80.6W Surface Mount PQFN-8(4.9x5.8)
PQFN-8(4.9x5.8)ROHS3 CompliantActive
MOSFET N-CH 150V 41.9A PQFN-8(4.9x5.8)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS022N15MC
- Store part #
- C2902172
- Package / case
- PQFN-8(4.9x5.8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2902172
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹411.14 | ₹411.14 |
| 10+ | ₹351.81 | ₹3,518.10 |
| 30+ | ₹316.61 | ₹9,498.30 |
| 100+ | ₹280.97 | ₹28,097.00 |
| 500+ | ₹264.68 | ₹1,32,340.00 |
| 1,000+ | ₹257.28 | ₹2,57,280.00 |
1 × ₹411.14
₹411.14
excl. GST
₹485.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTMFS022N15MC
₹411.14 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 380pF
- Ciss-Input Capacitance
- 1.315nF
- Pd - Power Dissipation
- 80.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 41.9A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.494 g
Overview
Applications
- Synchronous Rectification
- AC−DC and DC−DC Power Supplies
- AC−DC Adapters (USB PD) SR
- Load Switch
Key features
- Small Footprint (5 x 6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- 100% UIL Tested
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS011N15MC#C894035onsemi · FQFN-8(5x6) | onsemi | FQFN-8(5x6) | 4 | ₹1,793.47 · 4 in stock | View |
 | IRFH5015TRPBF#C513178Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 4,003 | ₹156.25 · 4,003 in stock | View |
 | NTMFS015N15MC#C894036onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | On request | ₹778.94 · 0 in stock | View |
