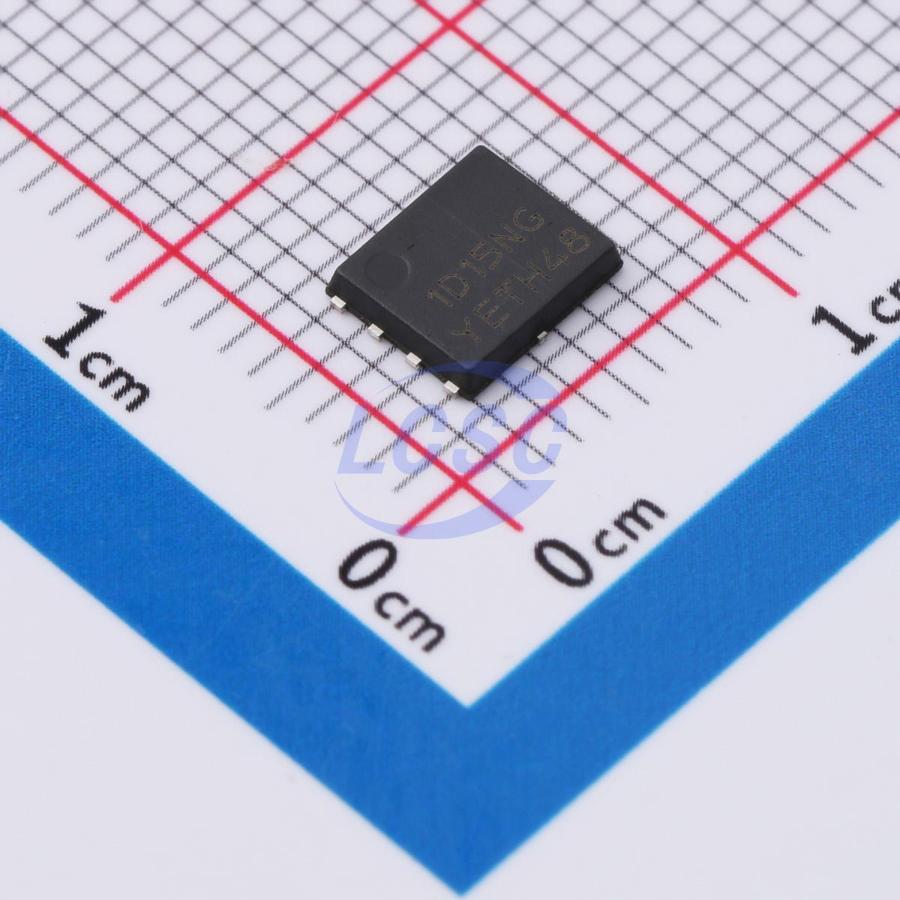

NTMFS1D15N03CGT1G
N-Channel 30V 245A 124W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 30V 245A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS1D15N03CGT1G
- Store part #
- C900266
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C900266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹259.00 | ₹259.00 |
| 10+ | ₹255.14 | ₹2,551.40 |
| 30+ | ₹252.56 | ₹7,576.80 |
| 100+ | ₹249.98 | ₹24,998.00 |
1 × ₹259.00
₹259.00
excl. GST
₹305.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS1D15N03CGT1G
₹259.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.6nF
- Ciss-Input Capacitance
- 7.3nF
- Pd - Power Dissipation
- 124W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 245A
- Reverse Transfer Capacitance (Crss)
- 99pF
- RDS(on)
- 1.15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 94nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The 800 V SUPERFET III MOSFET is a high-performance MOSFET series from onsemi, offering an 800 V breakdown voltage. The new 800 V SUPERFET III MOSFET is optimized for primary-side switching in flyback converters. Thanks to its optimized design, it reduces switching losses and case temperature without compromising EMI performance. In addition, the integrated Zener diode significantly enhances ESD capability. This new 800 V SUPERFET III MOSFET series delivers outstanding performance in SMPS applications — including laptop adapters, audio, lighting, ATX power supplies, and industrial power supplies — enabling higher efficiency, more compact designs, lower operating temperatures, and improved reliability.
Applications
- Hot Swap Application
- Power Load Switch
- Battery Management and Protection
Key features
- Advanced Package (5x6 mm) with Excellent Thermal Conduction
- Ultra Low RDS(on) to Improve System Efficiency
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS04N013SZ1#C55805920Bestirpower · DFN-8(5x6) | Bestirpower | DFN-8(5x6) | 200 | ₹71.35 · 200 in stock | View |
 | NVMFS5C420NLT1G#C2902072onsemi · SO-8FL | onsemi | SO-8FL | 3 | ₹314.13 · 3 in stock | View |
 | WSD30350DN56G#C5185326Winsok Semicon · DFN5X6-8 | Winsok Semicon | DFN5X6-8 | 136 | ₹239.99 · 136 in stock | View |
 | NTMFS5C410NLT1G#C348540onsemi · SO-8FL | onsemi | SO-8FL | 4,456 | ₹134.10 · 4,456 in stock | View |
 | HYG011N04LS5C2#C54907327HUAYI · PDFN-8L(5x6) | HUAYI | PDFN-8L(5x6) | 5 | ₹42.28 · 5 in stock | View |
