onsemiDatasheet (PDF)

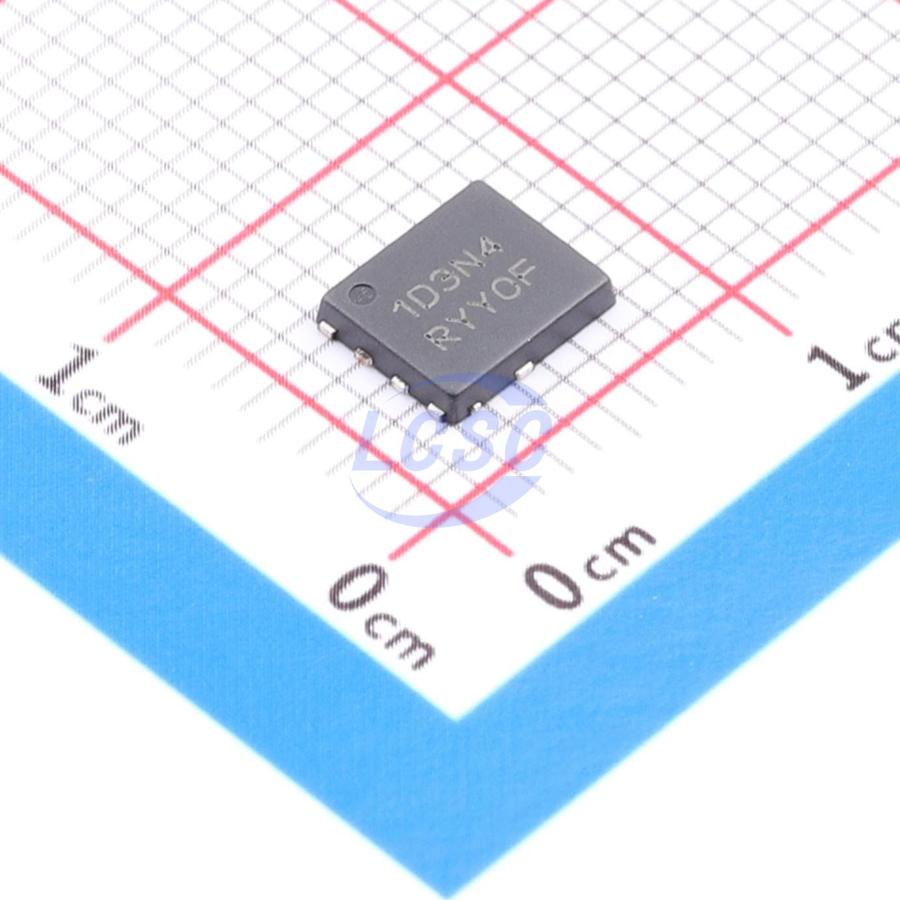

NTMFS1D3N04XMT1G
40V 195A 90W 1.3mΩ@10V 1 N-channel N-Channel DFN-5(5x6) Single FETs, MOSFETs RoHS
DFN-5(5x6)ROHS3 CompliantActive
MOSFET N-CH 40V 195A DFN-5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS1D3N04XMT1G
- Store part #
- C27869249
- Package / case
- DFN-5(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C27869249
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹429.74 | ₹429.74 |
| 10+ | ₹377.91 | ₹3,779.10 |
| 30+ | ₹345.61 | ₹10,368.30 |
| 100+ | ₹312.44 | ₹31,244.00 |
| 500+ | ₹297.26 | ₹1,48,630.00 |
| 1,500+ | ₹290.97 | ₹4,36,455.00 |
1 × ₹429.74
₹429.74
excl. GST
₹507.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per bag
NTMFS1D3N04XMT1G
₹429.74 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.763nF
- Current - Continuous Drain(Id)
- 195A
- Ciss-Input Capacitance
- 2.473nF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 37.3pF
- RDS(on)
- 1.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,500 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
Applications
- Motor drive
- Battery protection
- OR-ing diode applications
Key features
- Low on-resistance RDS(on) for minimal conduction losses
- Low capacitance for minimal driving losses
- Compact footprint (5 x 6 mm) for space-constrained designs
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C426NAFT1G#C129783onsemi · DFN-5(5.1x6.1) | onsemi | DFN-5(5.1x6.1) | On request | ₹330.62 · 0 in stock | View |
 | NVMFS5C612NLT1G#C900444onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹1,104.10 · 10 in stock | View |
 | ASDM40R009NQ-R#C2972875ASDsemi · DFN-5(4.9x5.9) | ASDsemi | DFN-5(4.9x5.9) | 3,628 | ₹83.18 · 3,628 in stock | View |
 | NTMFS5C430NLT1G#C194661onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 45,222 | ₹72.49 · 45,222 in stock | View |
 | NVMFS5C604NLT1G#C513058onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 9 | ₹1,941.32 · 9 in stock | View |
