HXY MOSFETDatasheet (PDF)

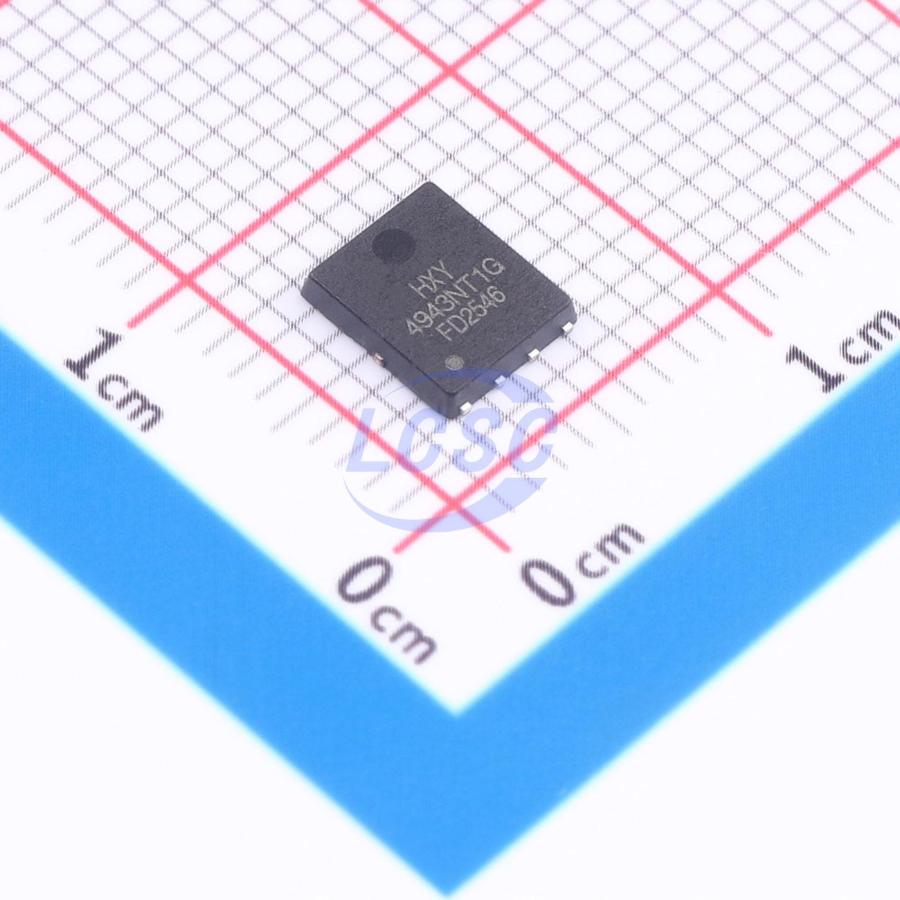

NTMFS4943NT1G-HXY
37W 30V 80A 4.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS4943NT1G-HXY
- Store part #
- C53263060
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C53263060
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.85 | ₹239.25 |
| 50+ | ₹38.33 | ₹1,916.50 |
| 150+ | ₹34.24 | ₹5,136.00 |
| 500+ | ₹29.15 | ₹14,575.00 |
| 2,500+ | ₹26.88 | ₹67,200.00 |
| 5,000+ | ₹25.52 | ₹1,27,600.00 |
5 × ₹47.85
₹239.25
excl. GST
₹282.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS4943NT1G-HXY
₹239.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 1.93nF
- Pd - Power Dissipation
- 37W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 260pF
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
