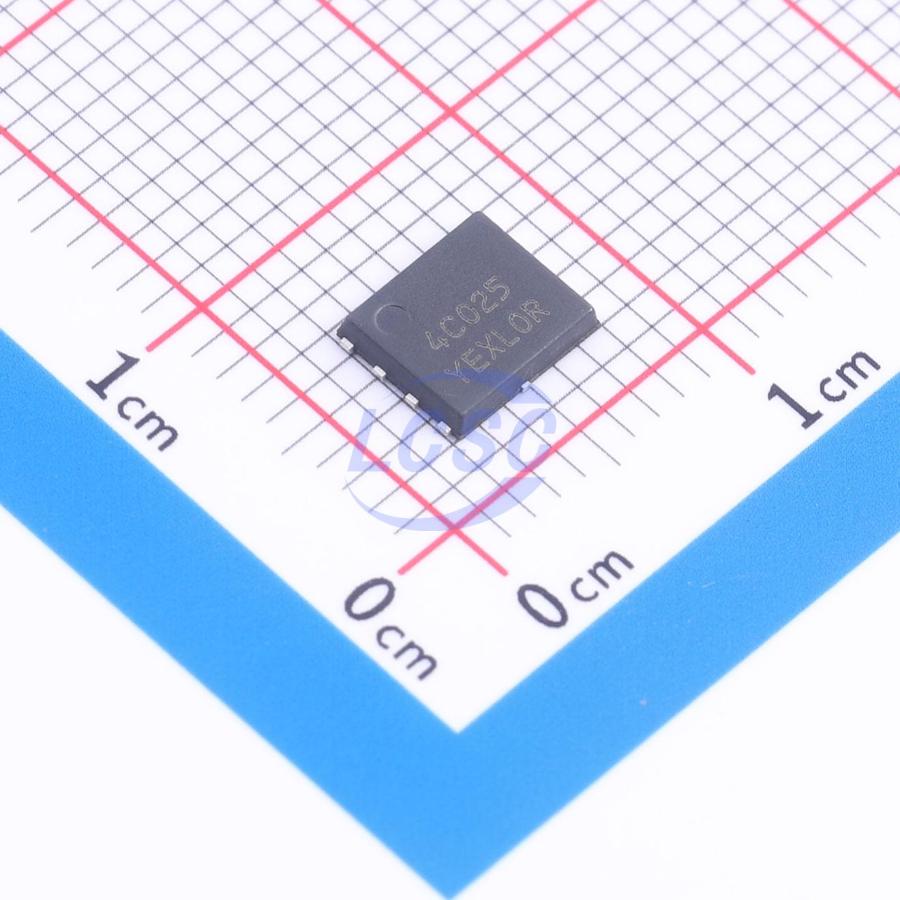

NTMFS4C025NT1G
30.5W 30V 69A 3.41mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS4C025NT1G
- Store part #
- C604423
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
167 in stock
#C604423
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.88 | ₹178.88 |
| 10+ | ₹154.16 | ₹1,541.60 |
| 30+ | ₹140.50 | ₹4,215.00 |
| 100+ | ₹125.33 | ₹12,533.00 |
| 500+ | ₹118.38 | ₹59,190.00 |
| 1,500+ | ₹115.35 | ₹1,73,025.00 |
1 × ₹178.88
₹178.88
excl. GST
₹211.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS4C025NT1G
₹178.88 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 841pF
- Ciss-Input Capacitance
- 1.683nF
- Pd - Power Dissipation
- 30.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 69A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 3.41mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- CPU Power Supply - DC-DC Converter
Key features
- Low on-resistance RDS(on) for minimized conduction losses
- Low capacitance for minimized driving losses
- Optimized gate charge for minimized switching losses
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS4C06NCT1G#C34994011onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 90 | ₹72.21 · 90 in stock | View |
 | NVMFS5C645NLAFT1G#C604613onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 23 | ₹347.13 · 23 in stock | View |
| NVMFS5C450NLAFT1G#C604599onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 7 | ₹475.23 · 7 in stock | View | |
 | NVMFS5C450NLWFAFT1G#C900432onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 12 | ₹672.97 · 12 in stock | View |
 | NTMFS5C442NT1G#C464094onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 2,647 | ₹72.61 · 2,647 in stock | View |
