HXY MOSFETDatasheet (PDF)

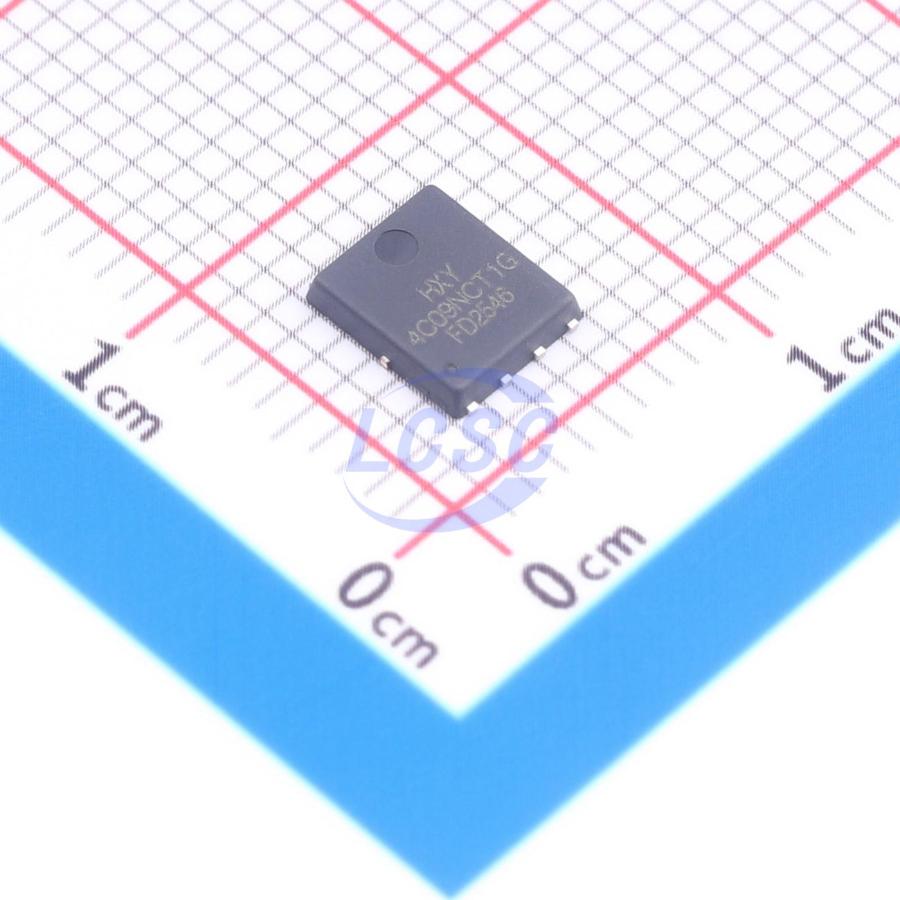

NTMFS4C09NCT1G-HXY
37W 30V 80A 4.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS4C09NCT1G-HXY
- Store part #
- C53263264
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C53263264
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.45 | ₹127.25 |
| 50+ | ₹20.16 | ₹1,008.00 |
| 150+ | ₹17.90 | ₹2,685.00 |
| 500+ | ₹15.07 | ₹7,535.00 |
| 2,500+ | ₹13.81 | ₹34,525.00 |
| 5,000+ | ₹13.06 | ₹65,300.00 |
5 × ₹25.45
₹127.25
excl. GST
₹150.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS4C09NCT1G-HXY
₹127.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 1.93nF
- Pd - Power Dissipation
- 37W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 260pF
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.138 g
