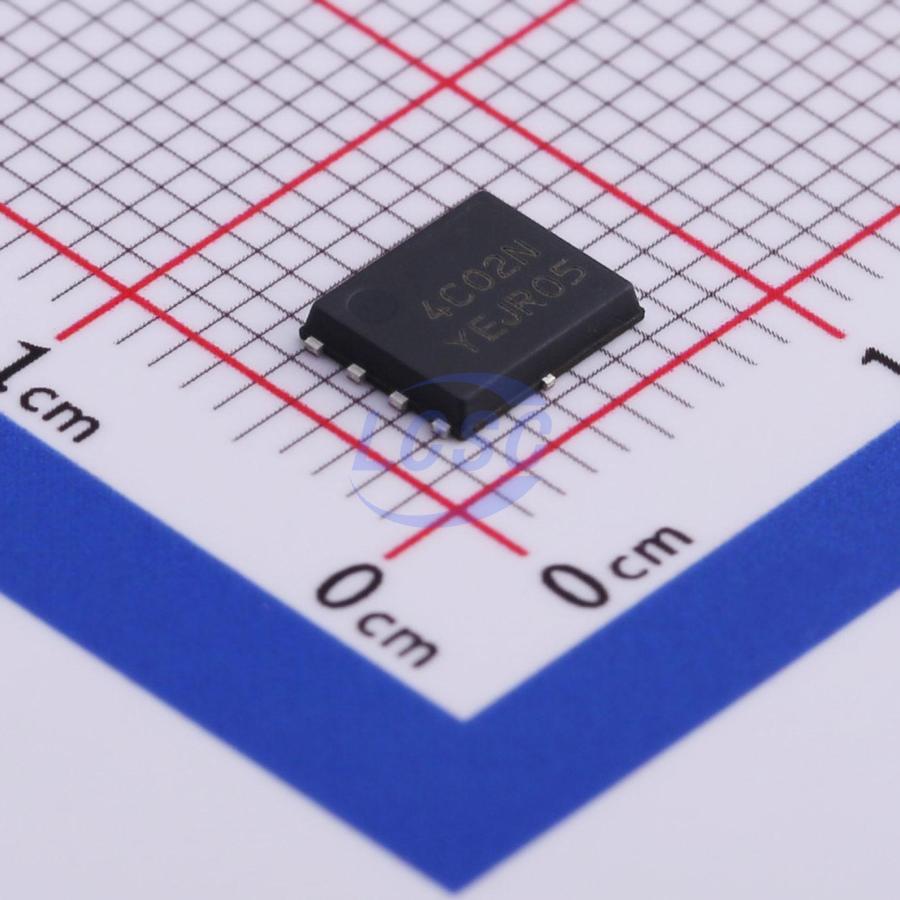

NTMFS4C302NT1G
30V 230A 96W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET 30V 230A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS4C302NT1G
- Store part #
- C511972
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
231 in stock
#C511972
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.67 | ₹78.67 |
| 10+ | ₹63.45 | ₹634.50 |
| 30+ | ₹55.63 | ₹1,668.90 |
| 100+ | ₹48.02 | ₹4,802.00 |
| 500+ | ₹43.46 | ₹21,730.00 |
| 1,500+ | ₹41.08 | ₹61,620.00 |
1 × ₹78.67
₹78.67
excl. GST
₹92.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS4C302NT1G
₹78.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.32nF
- Ciss-Input Capacitance
- 5.78nF
- Pd - Power Dissipation
- 96W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 230A
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 1.15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 37nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC011N03LS#C129786Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 196 | ₹125.54 · 196 in stock | View |
 | BSS04N010SA1#C55805919Bestirpower · DFN-8(5x6) | Bestirpower | DFN-8(5x6) | 45 | ₹95.27 · 45 in stock | View |
 | HSBA4086#C2987714HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,950 | ₹163.60 · 1,950 in stock | View |
 | NVMFS5C426NLT1G#C900425onsemi · SO-8FL | onsemi | SO-8FL | 15 | ₹365.31 · 15 in stock | View |
 | MOT3111G#C54938502MOT · PDFN-8L(5x6) | MOT | PDFN-8L(5x6) | 45 | ₹74.25 · 45 in stock | View |
