onsemiDatasheet (PDF)

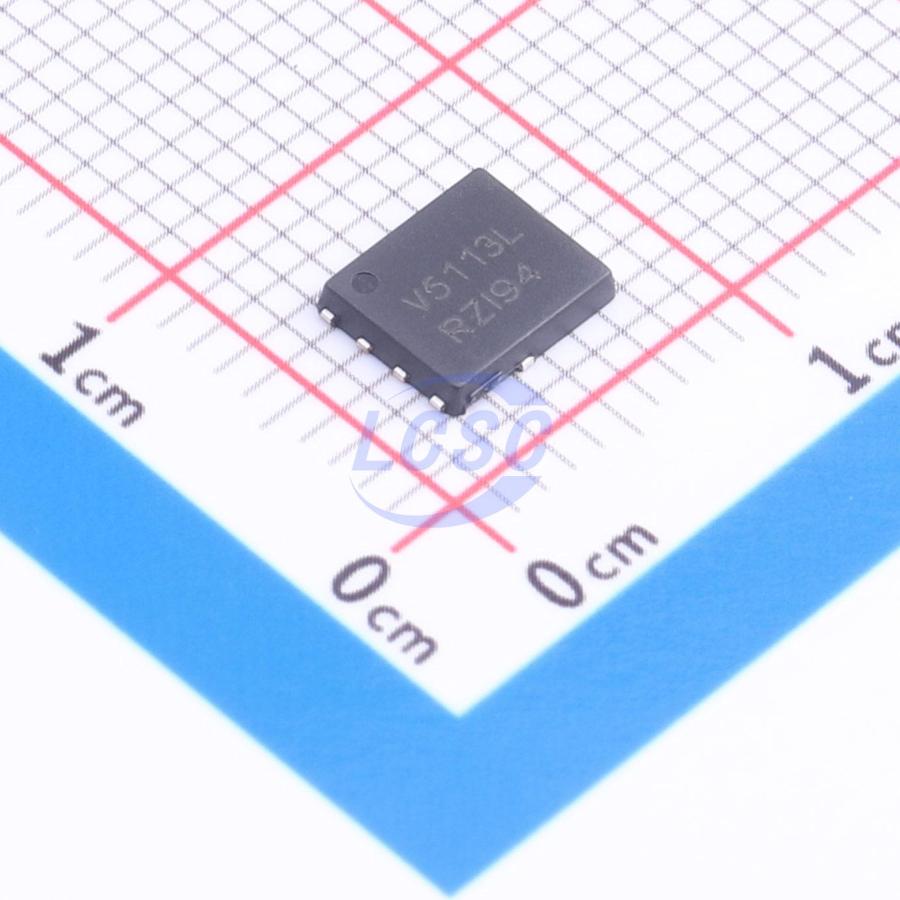

NTMFS5113PLT1G
150W 60V 10.5mΩ@10V 1 P-Channel P-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET P-CH 60V 64A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5113PLT1G
- Store part #
- C900298
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C900298
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹829.10 | ₹829.10 |
| 10+ | ₹737.18 | ₹7,371.80 |
| 30+ | ₹682.54 | ₹20,476.20 |
| 100+ | ₹627.25 | ₹62,725.00 |
| 500+ | ₹601.66 | ₹3,00,830.00 |
| 1,500+ | ₹590.18 | ₹8,85,270.00 |
1 × ₹829.10
₹829.10
excl. GST
₹978.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS5113PLT1G
₹829.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 505pF
- Ciss-Input Capacitance
- 4.4nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 10A;64A
- Reverse Transfer Capacitance (Crss)
- 319pF
- RDS(on)
- 10.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 45nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
Applications
- CPU power supply
- DC-DC converter
- Low-side switch
Key features
- Low on-resistance RDS(on) to minimize conduction losses
- High current carrying capability
- Specified avalanche energy
- These devices are lead-free, halogen-free/bromine-free flame retardant, and RoHS compliant
