onsemiDatasheet (PDF)

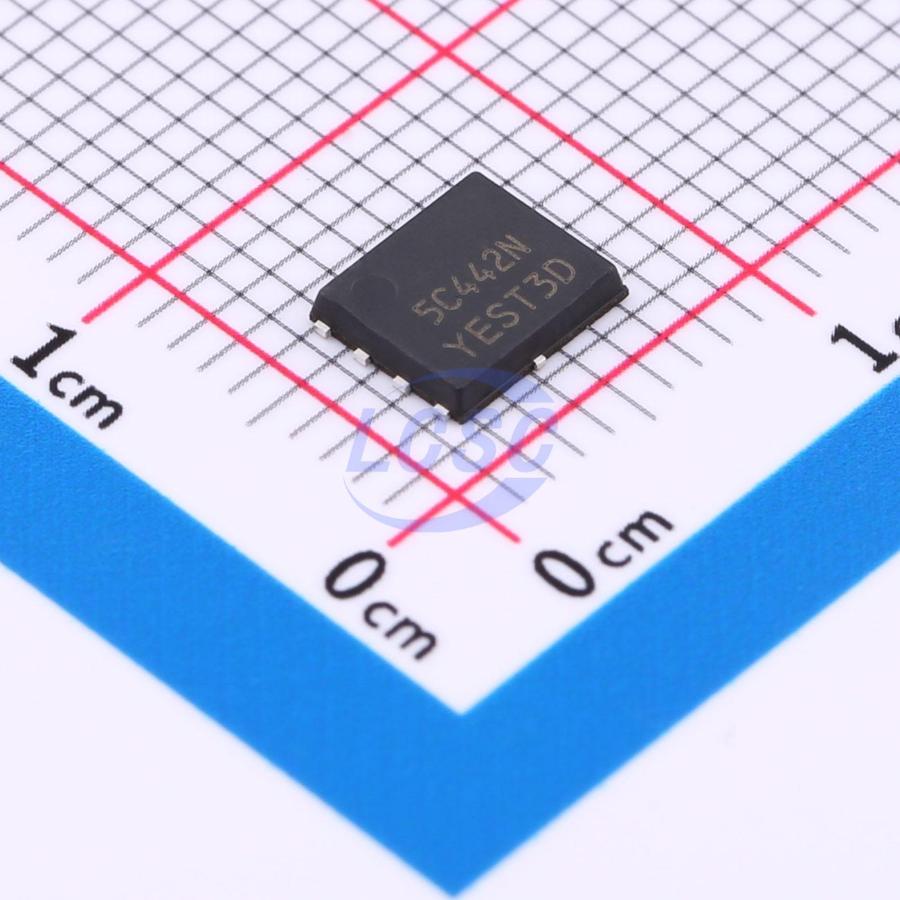

NTMFS5C442NT3G
N-Channel 40V 140A Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 40V 140A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5C442NT3G
- Store part #
- C893878
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C893878
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹629.56 | ₹629.56 |
| 10+ | ₹564.87 | ₹5,648.70 |
| 30+ | ₹524.45 | ₹15,733.50 |
| 100+ | ₹482.97 | ₹48,297.00 |
| 500+ | ₹464.27 | ₹2,32,135.00 |
| 1,000+ | ₹456.10 | ₹4,56,100.00 |
1 × ₹629.56
₹629.56
excl. GST
₹742.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS5C442NT3G
₹629.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 2.1nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 2.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C442NAFT1G#C604597onsemi · SO-8FL | onsemi | SO-8FL | 319 | ₹189.18 · 319 in stock | View |
| NVMFS5C442NWFAFT1G#C900430onsemi · SO-8FL | onsemi | SO-8FL | 87 | ₹354.66 · 87 in stock | View | |
 | NVMFS5C628NT1G#C900448onsemi · SO-8FL | onsemi | SO-8FL | 20 | ₹322.26 · 20 in stock | View |
 | TPH2R608NH,L1Q(M#C5379811TOSHIBA · SOP-8-Advance(5x6) | TOSHIBA | SOP-8-Advance(5x6) | 26,274 | ₹160.23 · 26,274 in stock | View |
 | STL160N10F8#C28247598ST · PowerFLAT-8(5x6) | ST | PowerFLAT-8(5x6) | 7 | ₹764.76 · 7 in stock | View |
