onsemiDatasheet (PDF)

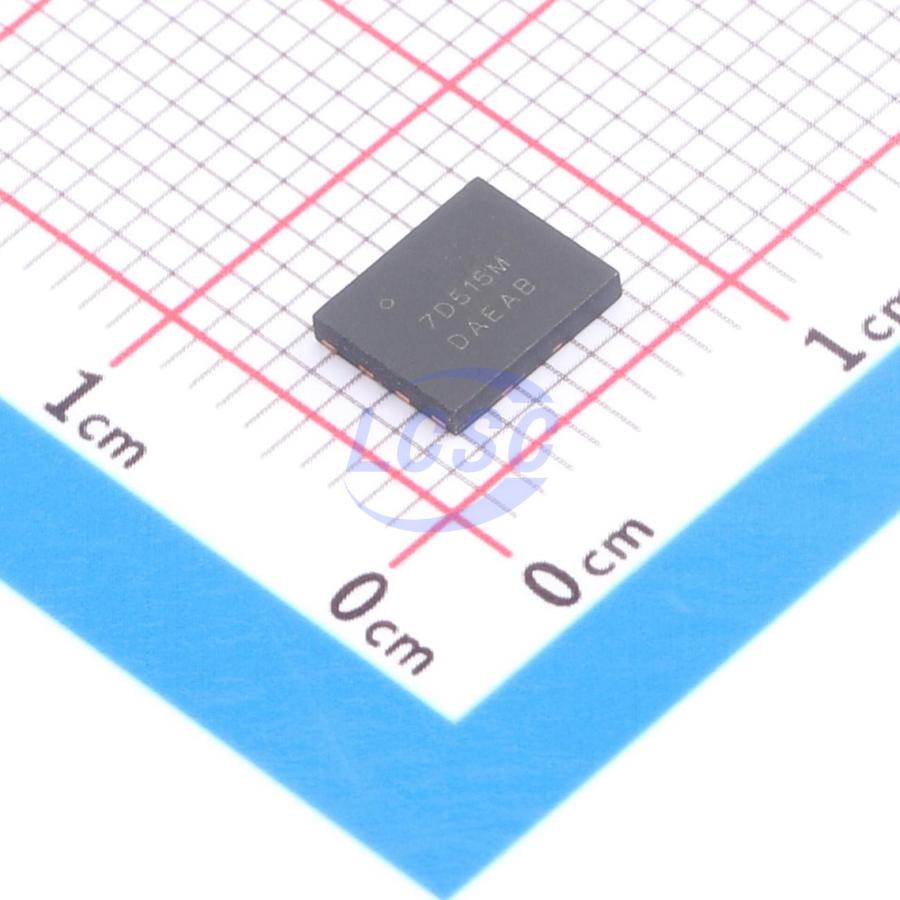

NTMFS7D5N15MC
166.7W 150V 95.6A 7.9mΩ@10V 1 N-channel N-Channel PQFN-8 Single FETs, MOSFETs RoHS
PQFN-8ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS7D5N15MC
- Store part #
- C5208917
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5208917
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹369.67 | ₹369.67 |
| 10+ | ₹314.38 | ₹3,143.80 |
| 30+ | ₹279.70 | ₹8,391.00 |
| 100+ | ₹244.36 | ₹24,436.00 |
| 500+ | ₹228.31 | ₹1,14,155.00 |
| 1,000+ | ₹221.38 | ₹2,21,380.00 |
1 × ₹369.67
₹369.67
excl. GST
₹436.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTMFS7D5N15MC
₹369.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.07nF
- Ciss-Input Capacitance
- 3.835nF
- Pd - Power Dissipation
- 166.7W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 95.6A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 7.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
Applications
- Synchronous rectification
- AC-DC and DC-DC power supplies
- AC-DC adapter (USB PD) synchronous rectification
- Load switch
Key features
- Compact package (5 x 6 mm) for space-constrained designs
- Low on-resistance RDS(on) for reduced conduction losses
- Low gate charge QG and capacitance for reduced driving losses
- 100% single-pulse avalanche energy (UIL) tested
- Lead-free, halogen-free/BFR-free, RoHS compliant
