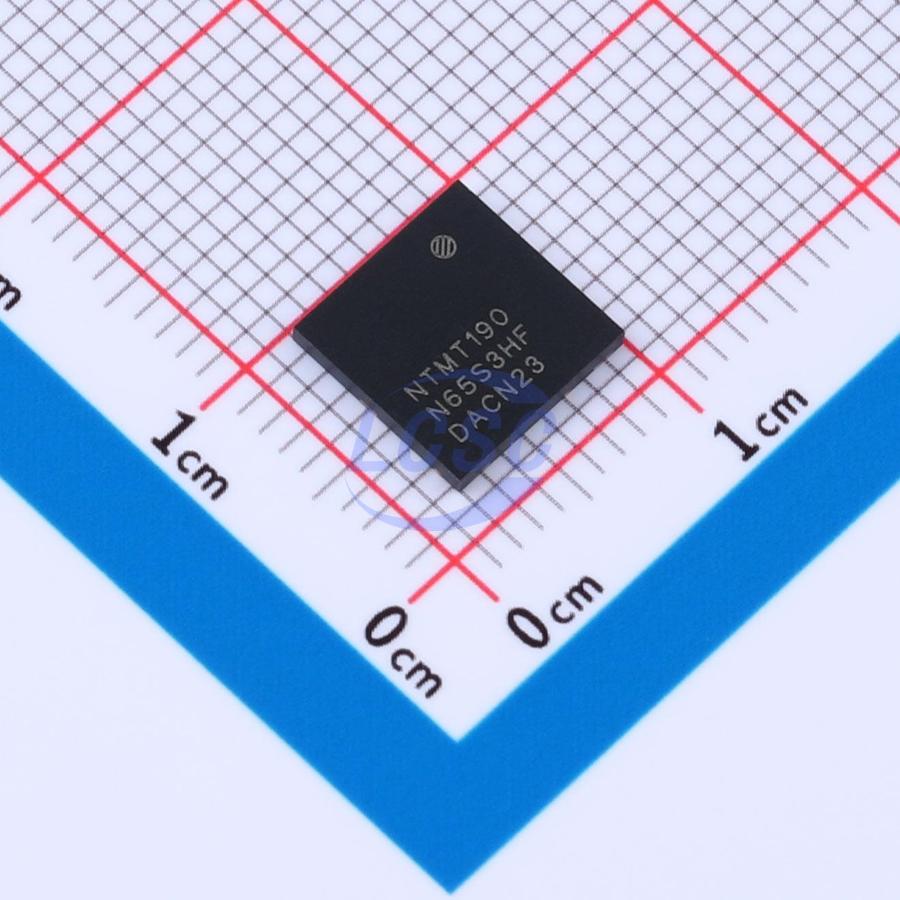

NTMT190N65S3HF
650V 20A 162W 190mΩ@10V 1 N-channel N-Channel PQFN-4(8x8) Single FETs, MOSFETs RoHS
PQFN-4(8x8)ROHS3 CompliantActive
N-Channel, Current:20A, Voltage:650V
- Manufacturer
- onsemi
- Manufacturer part #
- NTMT190N65S3HF
- Store part #
- C2902090
- Package / case
- PQFN-4(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2902090
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹562.08 | ₹562.08 |
| 10+ | ₹548.90 | ₹5,489.00 |
| 30+ | ₹540.04 | ₹16,201.20 |
| 100+ | ₹531.17 | ₹53,117.00 |
1 × ₹562.08
₹562.08
excl. GST
₹663.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTMT190N65S3HF
₹562.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 30pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.61nF
- Pd - Power Dissipation
- 162W
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
SUPERFET III MOSFET is a new high-voltage super-junction (SJ) MOSFET series utilizing charge balance technology, featuring excellent low on-resistance and low gate charge performance. This advanced technology is designed to minimize conduction losses, deliver superior switching performance, and withstand extremely high dv/dt rates. As a result, SUPERFET III MOSFETs are ideal for a wide range of power supply systems demanding miniaturization and higher efficiency. The body diode of SUPERFET III FRFET MOSFETs is optimized for excellent reverse recovery performance, eliminating the need for additional components and improving system reliability. The Power88 package is an ultra-thin SMT package (height: 1 mm) with a low-profile, small footprint (8x8 mm²). SUPERFET III MOSFETs in the Power88 package deliver superior switching performance due to low parasitic source inductance and separate power and drive sources. The Power88 package has a moisture sensitivity level of MSL 1.
Applications
- Telecom/Server Power Supplies - Industrial Power Supplies - UPS/Solar - Lighting/Chargers/Adapters
Key features
- 700 V @ TJ = 150°C
- Typical RDS(on) = 159 mΩ
- Ultra-low gate charge (typical Qg = 34 nC)
- Low effective output capacitance (typical Coss(eff.) = 316 pF)
- 100% avalanche tested
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMT090N65S3HF#C2902093onsemi · PQFN-4(8x8) | onsemi | PQFN-4(8x8) | 8 | ₹2,243.53 · 8 in stock | View |
 | FCMT099N65S3#C348533onsemi · PQFN-4(8x8) | onsemi | PQFN-4(8x8) | 2,378 | ₹320.30 · 2,378 in stock | View |
 | NTMT150N65S3HF#C2902091onsemi · PQFN-4(8x8) | onsemi | PQFN-4(8x8) | On request | ₹1,063.94 · 0 in stock | View |
 | FCMT125N65S3#C504888onsemi · PQFN-4(8x8) | onsemi | PQFN-4(8x8) | On request | ₹1,027.42 · 0 in stock | View |
 | NTMT110N65S3HF#C2902092onsemi · PQFN-4(8x8) | onsemi | PQFN-4(8x8) | On request | ₹1,442.67 · 0 in stock | View |
